Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

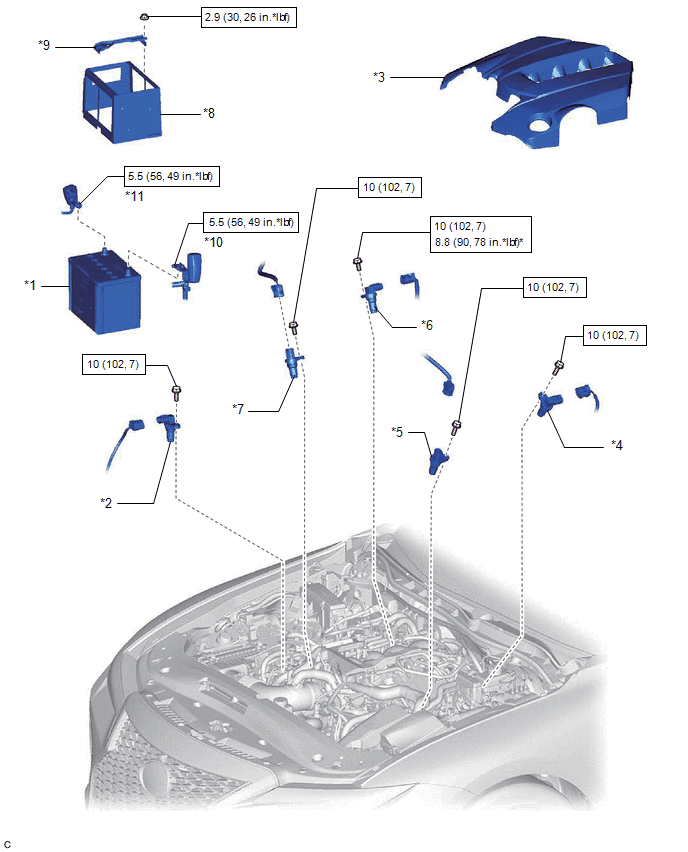

| *1 | BATTERY | *2 | CAMSHAFT POSITION SENSOR |
| *3 | V-BANK COVER SUB-ASSEMBLY | *4 | VVT SENSOR (for Intake Side of Bank 1) |
| *5 | VVT SENSOR (for Exhaust Side of Bank 1) | *6 | VVT SENSOR (for Intake Side of Bank 2) |
| *7 | VVT SENSOR (for Exhaust Side of Bank 2) | *8 | BATTERY INSULATOR |
| *9 | BATTERY CLAMP | *10 | POSITIVE BATTERY TERMINAL |
| *11 | NEGATIVE BATTERY TERMINAL | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench |
