Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH

Disengage the wire harness clamp.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

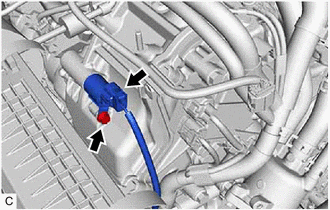

Disconnect the camshaft timing oil control valve assembly LH connector.
Remove the bolt and camshaft timing oil control valve assembly LH from the cylinder head cover sub-assembly LH.
NOTE:
- Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly LH (connecting surface with the cylinder head cover sub-assembly LH).
- If the camshaft timing oil control valve assembly LH has been struck or dropped, replace it.

Remove the O-ring from the camshaft timing oil control valve assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

O-ring

DISCONNECT VENTILATION HOSE
See step 5
REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
See step 6

REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH

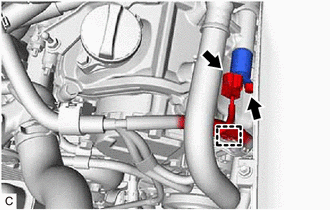

Disconnect the camshaft timing oil control valve assembly RH connector.

Remove the bolt and camshaft timing oil control valve assembly RH from the cylinder head cover sub-assembly.
NOTE:
- Do not allow foreign matter to contact the oil seal face of the camshaft timing oil control valve assembly RH (connecting surface with the cylinder head cover sub-assembly).
- If the camshaft timing oil control valve assembly RH has been struck or dropped, replace it.

Remove the O-ring from the camshaft timing oil control valve assembly RH.

O-ring
