Components [11/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

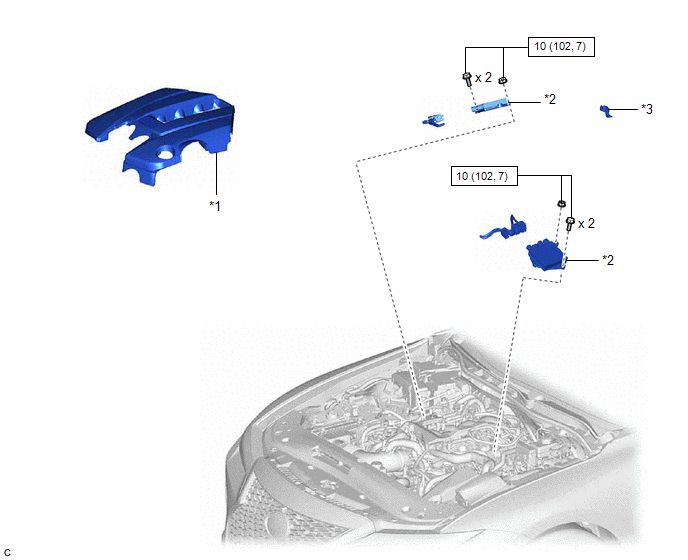

Fig 1: Injector Driver Replacement Components With Torque Specifications
GTY1084429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 V-BANK COVER SUB-ASSEMBLY *2 INJECTOR DRIVER
*3 EFI FUEL PIPE CLAMP - -
N.m (kgf/cm, ft.lbf): Specified torque - -
