Components [09/2022 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

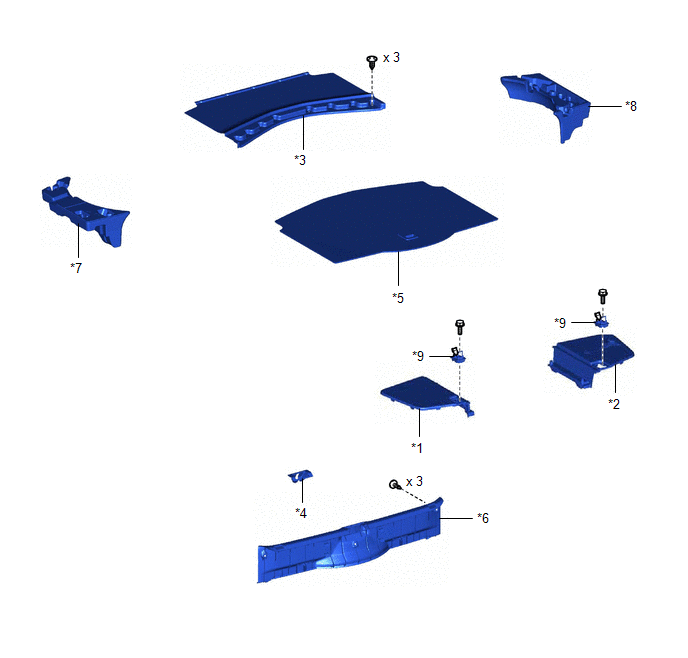

| *1 | DECK SIDE TRIM BOX LH | *2 | DECK SIDE TRIM BOX RH |
| *3 | FRONT LUGGAGE COMPARTMENT TRIM COVER | *4 | LUGGAGE COMPARTMENT DOOR STRIKER COVER |
| *5 | LUGGAGE COMPARTMENT FLOOR MAT | *6 | REAR LUGGAGE COMPARTMENT TRIM COVER |
| *7 | SPARE WHEEL COVER TRAY LH | *8 | SPARE WHEEL COVER TRAY RH |
| *9 | ROPE HOOK ASSEMBLY | - | - |

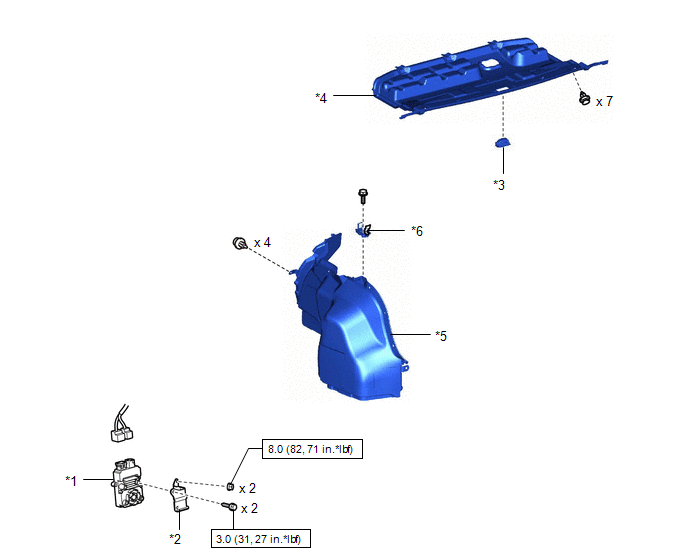

| *1 | FUEL PUMP CONTROL ECU | *2 | |
| *3 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *4 | FRONT UPPER LUGGAGE COMPARTMENT TRIM COVER |
| *5 | LUGGAGE COMPARTMENT TRIM COVER LH | *6 | ROPE HOOK ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
