Removal [11/2021 - 09/2022]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [11/2021 - 09/2022]

  2. REMOVE FUEL PUMP WITH FILTER ASSEMBLY (for Brush Type Motor)

    Refer to DISASSEMBLY [11/2021 - 09/2022]

  3. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY (for Brush Type Motor)

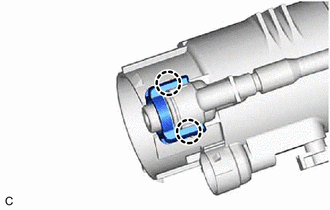

    1. Disengage the 2 claws to remove the No. 2 fuel suction support from the fuel filter.
      GTY1084370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

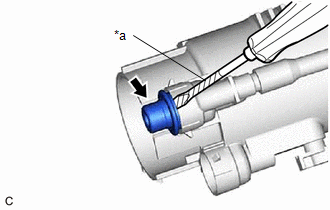

    2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly.
      GTY1084359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Slowly pull out the fuel pressure regulator assembly because the O-rings are firmly installed between the fuel pressure regulator assembly and the fuel filter.
      • Do not damage the fuel filter.
    3. Remove the 2 O-rings from the fuel pressure regulator assembly.
      GTY467360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
  4. REMOVE FUEL PUMP FILTER (for Brushless Type Motor)

    Refer to DISASSEMBLY [11/2021 - 09/2022]

  5. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY (for Brushless Type Motor)

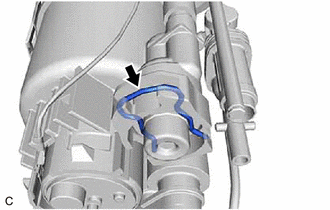

    1. Remove the clip from the fuel filter.
      GTY804761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

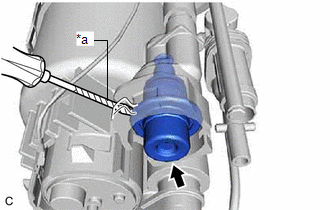

    2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel pressure regulator assembly.
      NOTE:
      • Slowly pull out the fuel pressure regulator assembly because the O-rings are firmly installed between the fuel pressure regulator assembly and the fuel filter.
      • Do not damage the fuel filter.
      GTY1138102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Remove the 2 O-rings from the fuel pressure regulator assembly.
      GTY467360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
