Caution / Notice / Hint
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.
- When replacing the fuel filter, replace it together with the fuel suction plate sub-assembly.

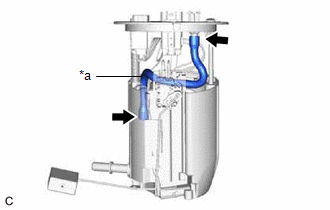

| *a | Tube |
