Components [09/2022 - ]

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

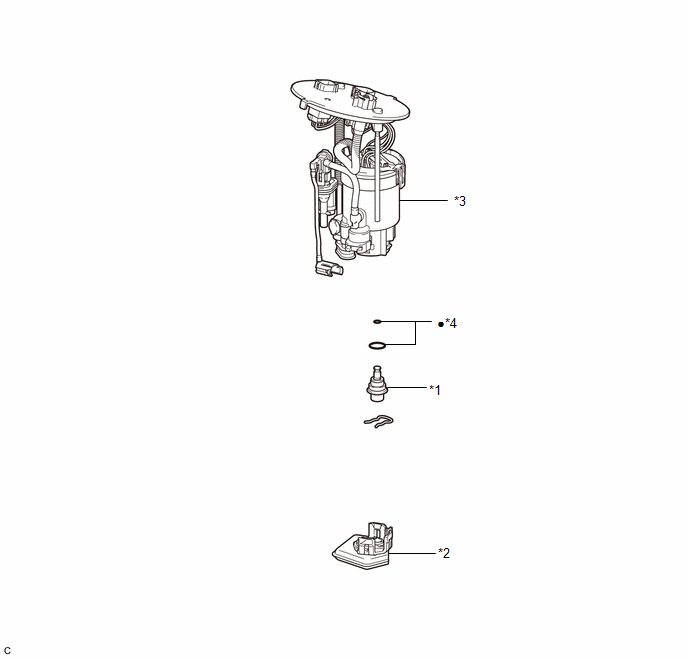

Fig 1: Fuel Pressure Regulator Replacement Components [09/2022 - ]
GTY1138154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL PRESSURE REGULATOR ASSEMBLY *2 FUEL PUMP FILTER
*3 FUEL FILTER *4 O-RING
• Non-reusable part - -
