Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

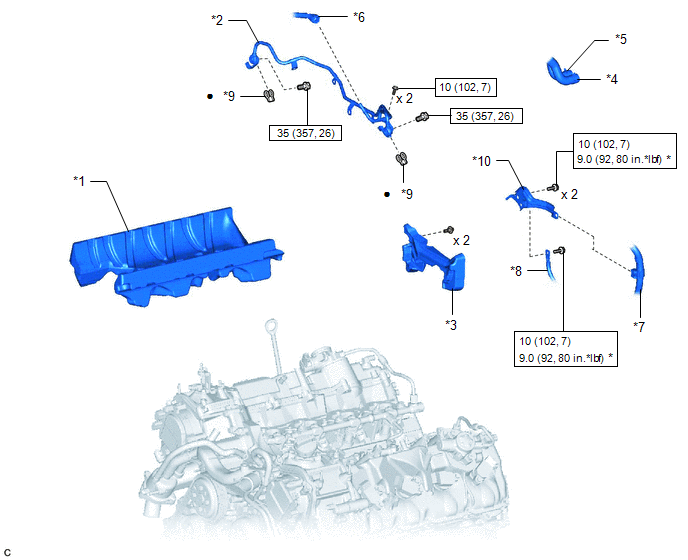

| *1 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*2 |
NO. 1 FUEL PIPE SUB-ASSEMBLY |
| *3 |
NO. 3 COVER SUB-ASSEMBLY |
*4 |
INLET HEATER WATER HOSE |
| *5 |
OUTLET HEATER WATER HOSE |
*6 |
FUEL TUBE SUB-ASSEMBLY |
| *7 |
ENGINE WIRE |
*8 |
NO. 2 ENGINE WIRE |
| *9 |
GASKET |
*10 |
WIRE HARNESS BRACKET |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with a union nut wrench |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

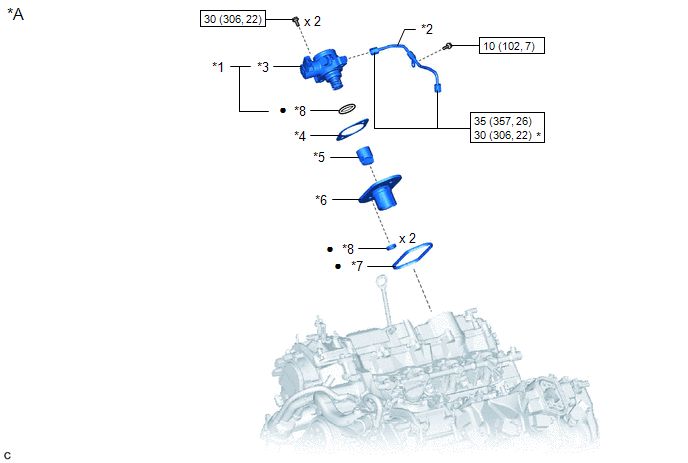

| *A |
for Bank 1 |
- |
- |
| *1 |
FUEL PUMP WITH SEAL SUB-ASSEMBLY |
*2 |
NO. 3 FUEL PIPE SUB-ASSEMBLY |
| *3 |
FUEL PUMP SUB-ASSEMBLY |
*4 |
FUEL PUMP INSULATOR |
| *5 |
FUEL PUMP LIFTER ASSEMBLY |
*6 |
FUEL PUMP LIFTER GUIDE |
| *7 |
FUEL PUMP SPACER GASKET |
*8 |
O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with a union nut wrench |
| • |
Non-reusable part |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

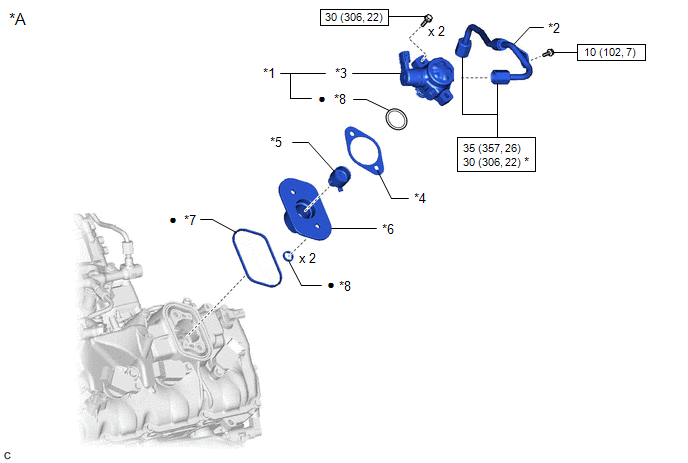

| *A |
for Bank 2 |
- |
- |
| *1 |
FUEL PUMP WITH SEAL SUB-ASSEMBLY |
*2 |
NO. 2 FUEL PIPE SUB-ASSEMBLY |
| *3 |
FUEL PUMP SUB-ASSEMBLY |
*4 |
FUEL PUMP INSULATOR |
| *5 |
FUEL PUMP LIFTER ASSEMBLY |
*6 |
FUEL PUMP LIFTER GUIDE |
| *7 |
FUEL PUMP SPACER GASKET |
*8 |
O-RING |
|
N.m (kgf/cm, ft.lbf): Specified torque |
* |
For use with a union nut wrench |
| • |
Non-reusable part |
- |
- |
