Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to REMOVAL [09/2020 - ]

  2. REMOVE ENGINE SWITCH

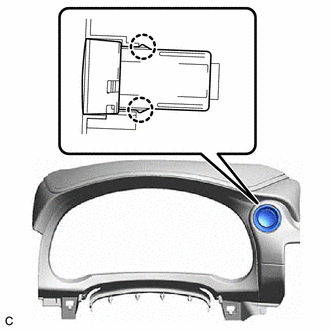

    1. Disengage the 2 claws and remove the engine switch.
      GTY965145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
