DTC P2610: ECM / PCM Internal Engine Off Timer Performance [11/2021 - ]: Description

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

The soak timer operates after the engine switch is turned off. When a certain amount of time has elapsed after turning the engine switch off, the soak timer activates the ECM to perform malfunction checks which can only be performed after the engine is stopped. The soak timer is built into the ECM.

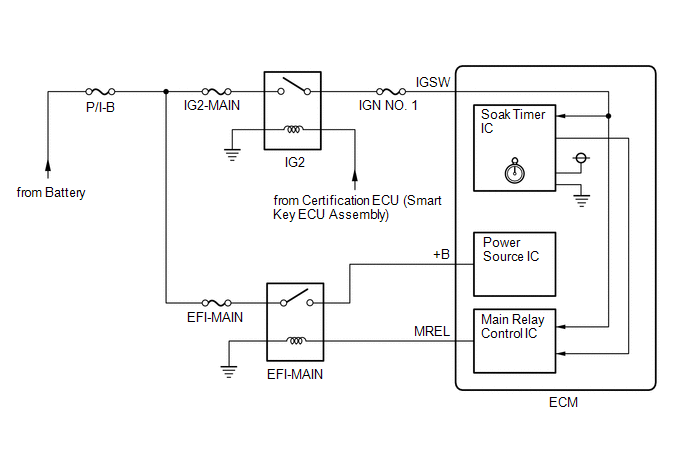

Fig 1: Soak Timer (Built Into ECM) Wiring Diagram
GTY511979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
