Parts Location [11/2021 - ]: Illustration
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

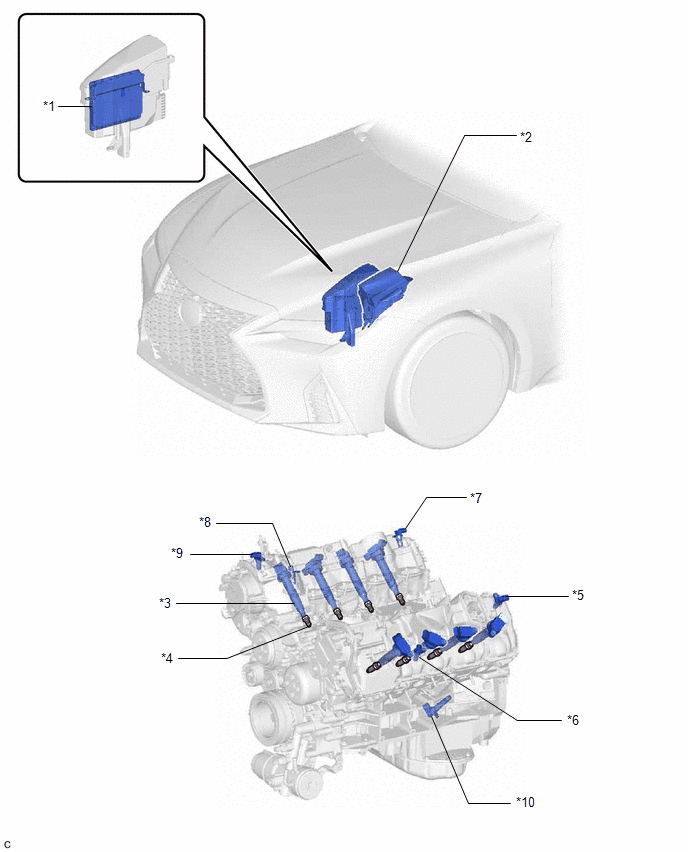

| *1 | ECM | *2 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY |
| *3 | IGNITION COIL ASSEMBLY | *4 | SPARK PLUG |
| *5 | VVT SENSOR (for Intake Side of Bank 1) | *6 | VVT SENSOR (for Exhaust Side of Bank 1) |
| *7 | VVT SENSOR (for Intake Side of Bank 2) | *8 | VVT SENSOR (for Exhaust Side of Bank 2) |
| *9 | CAMSHAFT POSITION SENSOR | *10 | CRANKSHAFT POSITION SENSOR |
