Kick Down Switch Circuit [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK HARNESS AND CONNECTOR (KICK DOWN SWITCH ASSEMBLY - BODY GROUND)
- Disconnect the A57 kick down switch assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A57-2 (E) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (KICK DOWN SWITCH ASSEMBLY - BODY GROUND)
Result:
OK
See step 2
- INSPECT KICK DOWN SWITCH ASSEMBLY
- Remove the kick down switch assembly.
Refer to REMOVAL [11/2021 - ]
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Kick Down Switch Assembly)Standard Resistance
Tester Connection Condition Specified Condition 2 (E) - 1 (KD) Continuously press
(Kick down switch is on)Below 1 Ω Released
(Kick down switch is off)10 kΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE KICK DOWN SWITCH ASSEMBLY. Refer to COMPONENTS [11/2021 - ]
Result:
OK
See step 3
- Remove the kick down switch assembly.
- CHECK HARNESS AND CONNECTOR (KICK DOWN SWITCH ASSEMBLY - ECM)
- Install the kick down switch assembly.

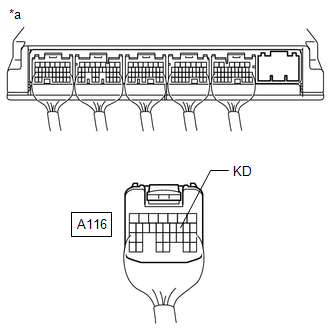

8*a Rear view of wire harness connector
(to ECM)Refer to INSTALLATION [11/2021 - ]
- Disconnect the A116 ECM connector.
- Measure resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A116-10 (KD) - Body ground Fully depressed
(Kick down switch is on)Below 1 Ω Released
(Kick down switch is off)10 kΩ or higher Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [11/2021 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (KICK DOWN SWITCH ASSEMBLY - ECM)
- Install the kick down switch assembly.
