DTC P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) [11/2021 - ]: Description

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

The TCM controls the lock-up solenoid using a predetermined duty ratio*, and performs lock-up and flex lock-up control.

HINT:

*: The duty ratio is the ratio of the current ON time (A) to the total of the current ON and OFF time (A + B).

Duty Ratio (%) = A / (A + B) x 100

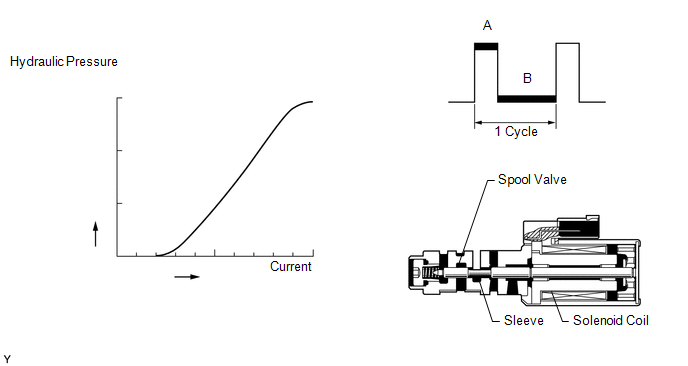

Fig 1: Hydraulic Pressure And Current Performance Chart

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	Memory
P2759	Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)	1. Diagnosis Condition 2. Malfunction Status 3. Malfunction Time 4. Other The vehicle is being driven. An open or short in the shift solenoid valve SLU circuit is detected. 1 second 1-trip detection logic	Shift solenoid valve SLU Transmission wire Harness and connector TCM	Comes on	DTC stored
