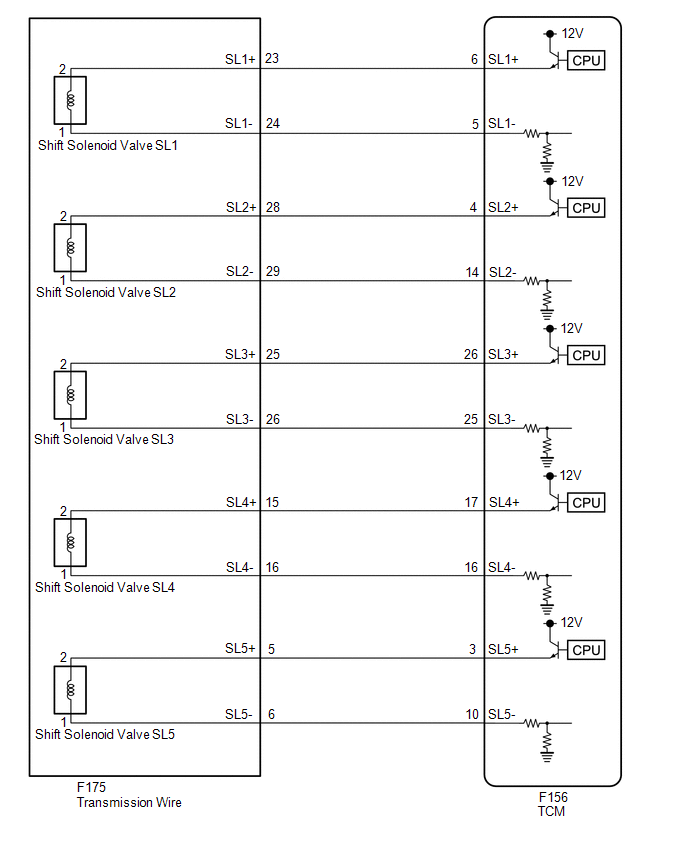

DTC P0748: Pressure Control Solenoid "A" Electrical (Shift Solenoid Valve SL1); DTC P0778: Pressure Control Solenoid "B" Electrical (Shift Solenoid Valve SL2); DTC P0798: Pressure Control Solenoid "C" Electrical (Shift Solenoid Valve SL3); DTC P2810: Pressure Control Solenoid "G" Electrical (Shift Solenoid Valve SL4); DTC P2819: Pressure Control Solenoid "H" Electrical (Shift Solenoid Valve SL5) [11/2021 - ]: Wiring Diagram
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
