System Diagram [09/2020 - ]

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

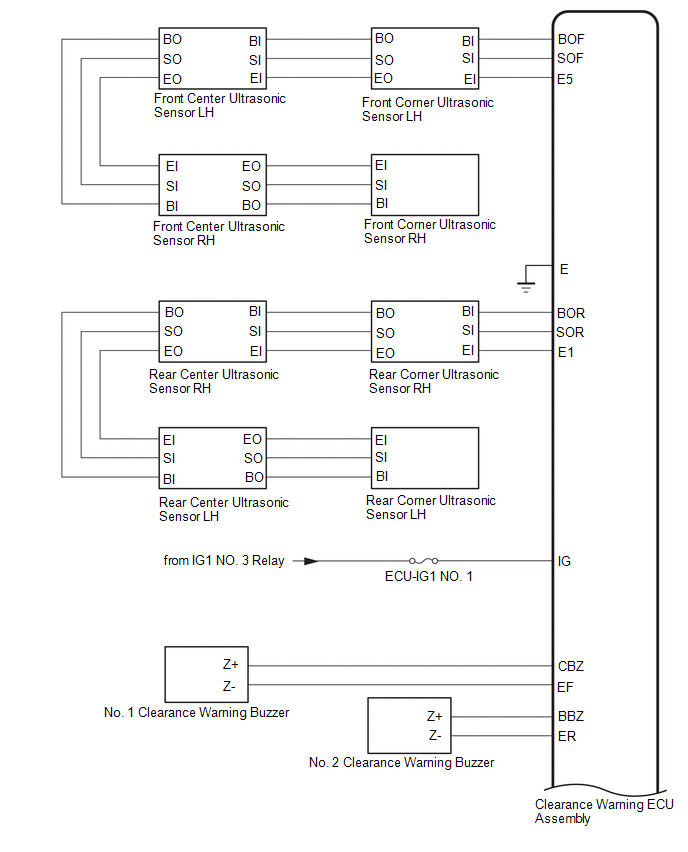

GTY971534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

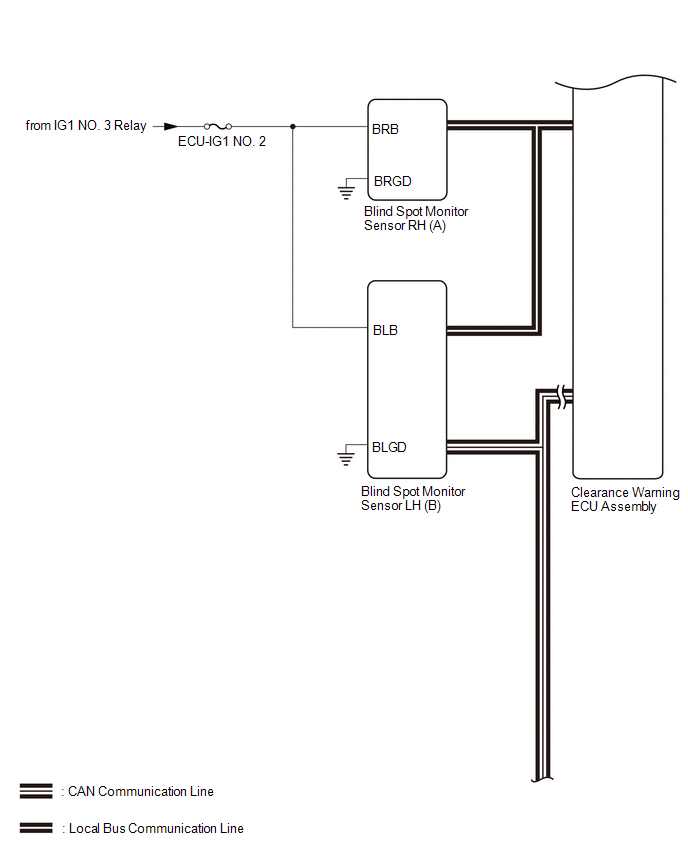

GTY971685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

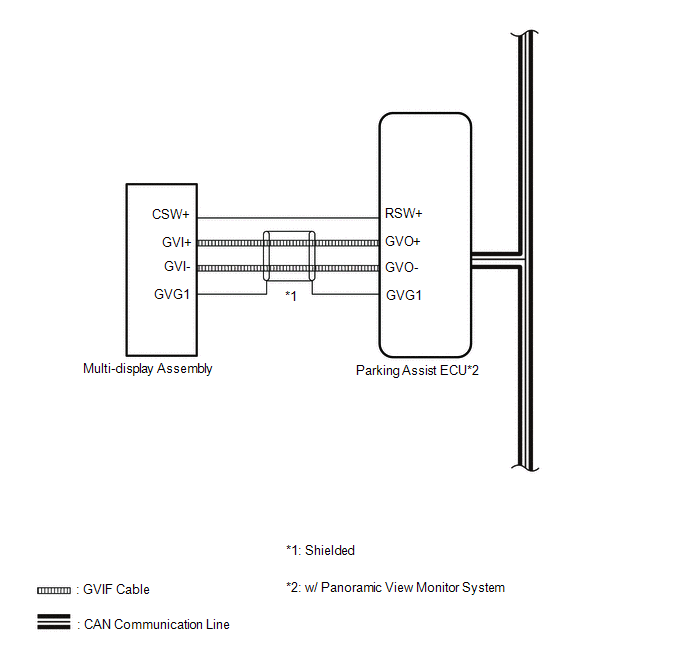

GTY970706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

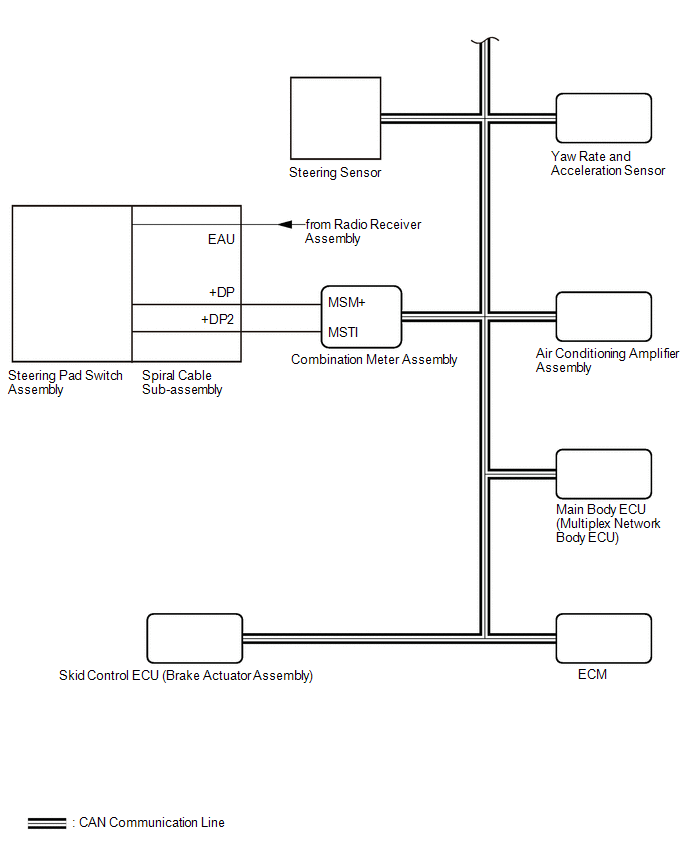

GTY971963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
