Removal [04/2013 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 9 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 9 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - ]

  2. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 10 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 10 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 10 [09/2020 - ]

  3. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 11 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 11 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 11 [09/2020 - ]

  4. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

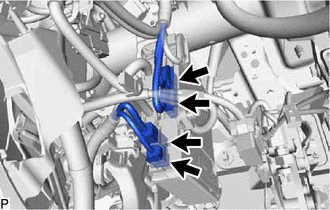

    1. Disconnect each connector.
      GTY468158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

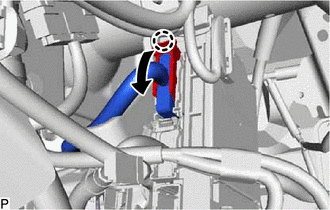

    2. Disengage the claw and disconnect the connector as shown in the illustration.
      GTY468160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

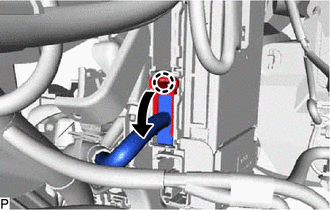

    3. Disengage the claw and disconnect the connector as shown in the illustration.
      GTY471148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

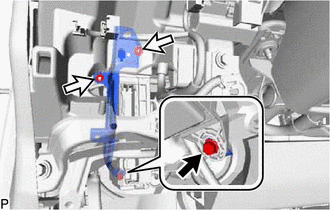

    4. Remove the bolt and 2 nuts, and disconnect the wiring harness clamp bracket.
      GTY460685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    5. Pull out the instrument panel junction block assembly with main body ECU.

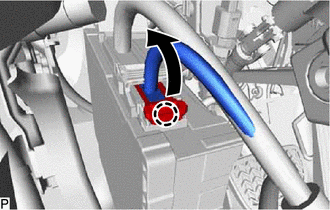

    6. Disengage the claw and disconnect the connector as shown in the illustration.
      GTY468156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. w/ Connector Lock:

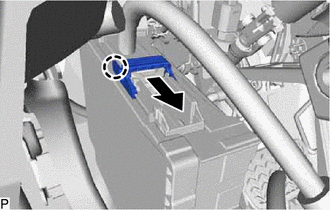

      1. Disengage the claw and release the connector lock as shown in the illustration.
        GTY468162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

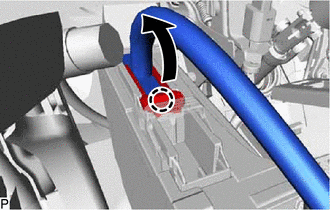

    8. Disengage the claw and disconnect the connector as shown in the illustration and remove the instrument panel junction block assembly with main body ECU.
      GTY468165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

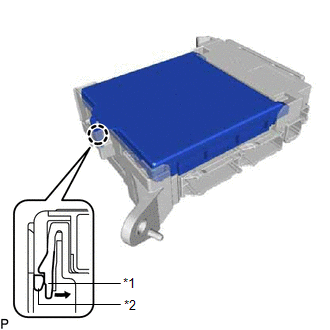

    1. Press the claw of the instrument panel junction block assembly as shown in the illustration to release the lock.
      GTY466689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Instrument Panel Junction Block Assembly
      *2 Main Body ECU (Multiplex Network Body ECU)

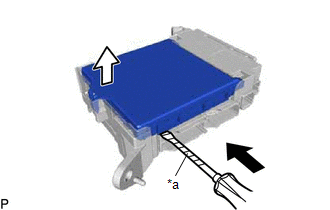

    2. With the instrument panel junction block assembly lock released, insert a screwdriver with its tip wrapped with protective tape horizontally between the main body ECU (multiplex network body ECU) and instrument panel junction block assembly.
      GTY469940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:
      • Use a screwdriver with a diameter between 5.0 mm (0.197 in.) and 6.3 mm (0.248 in.) and a length of approximately 90 mm (3.54 in.).
      • Do not insert the screwdriver under the connector socket of the main body ECU (multiplex network body ECU).
    3. Using the screwdriver, carefully raise the main body ECU (multiplex network body ECU) to the position where the connector becomes disconnected.
      NOTE:

      Do not twist the screwdriver to raise the main body ECU (multiplex network body ECU).

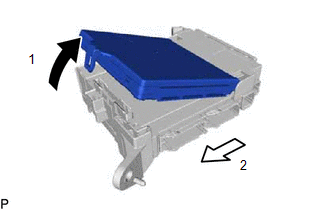

    4. Raise the main body ECU (multiplex network body ECU) as shown by the arrow (1), and then pull it out as shown by the arrow (2) in the illustration.
      GTY466474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the main body ECU (multiplex network body ECU) connector.
