Adjustment [11/2021 - ]: Procedure

HINT:

Inspect and adjust the brake pedal height with the floor carpet folded back.

1. Check the brake pedal height.
   1. Measure the shortest distance between the brake pedal pad surface and floor panel.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

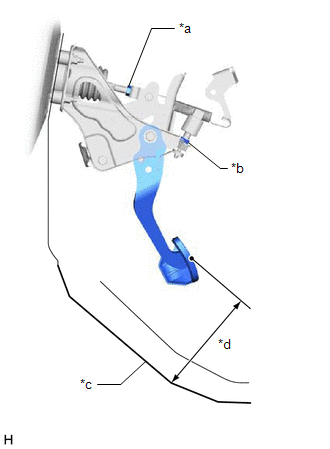

      *a	Clevis Lock Nut
      *b	Stop Light Switch Assembly Lock Nut
      *c	Floor Panel
      *d	Brake Pedal Height

      Brake Pedal Height from Floor Panel

      Model	Specified Condition
      for 2WD	158.4 to 168.4 mm (6.24 to 6.62 in.)
      for AWD	170.0 to 180.0 mm (6.70 to 7.08 in.)

      If the brake pedal height is incorrect, inspect and adjust the push rod length according to the procedure below.

2. Adjust the push rod length.
   1. Disconnect the connector from the stop light switch assembly.
   2. Loosen the stop light switch assembly lock nut, and then turn the stop light switch assembly to allow for brake pedal free play.
   3. Loosen the clevis lock nut and adjust the brake pedal height by turning the push rod to achieve the correct height.

      Brake Pedal Height from Floor Panel

      Model	Specified Condition
      for 2WD	158.4 to 168.4 mm (6.24 to 6.62 in.)
      for AWD	170.0 to 180.0 mm (6.70 to 7.08 in.)

   4. Tighten the clevis lock nut.

      Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)

   5. Install the stop light switch assembly.

      Refer to INSTALLATION [04/2013 - ]

1. Stop the engine and firmly depress the brake pedal several times until no vacuum is left in the brake booster assembly.
2. Depress the brake pedal until a slight resistance is felt. Measure the distance as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Brake Pedal Free Play

   Brake Pedal Free Play

   1.0 to 6.0 mm (0.0394 to 0.236 in.)

   If the brake pedal free play is not as specified, check the stop light switch clearance.

   Refer to PROCEDURE - Step 1

   If the brake pedal free play is as specified, proceed to the Inspect Brake Pedal Reserve Distance procedure.

HINT:

Measure the distance at the same point used for the brake pedal height inspection.

1. Release the parking brake.
2. With the engine running, depress the brake pedal and measure the pedal reserve distance.

   Brake Pedal Reserve Distance from Floor Panel at 500 N (51 kgf, 112.4 lbf)

   Model	Specified Condition
   2WD	More than 97 mm (3.8 in.)
   AWD	More than 107 mm (4.2 in.)
