Removal [10/2016 - 09/2020]: Procedure

  1. REMOVE NO. 1 REAR BUMPER PLATE

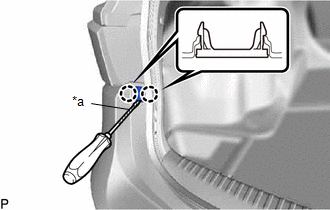

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the No. 1 rear bumper plate.
      GTY653433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

  2. REMOVE REAR BUMPER ASSEMBLY

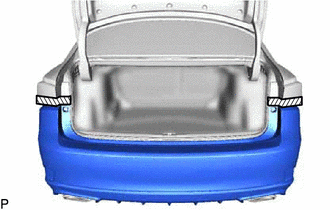

    1. Apply protective tape around the rear bumper assembly as shown in the illustration.
      GTY646046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

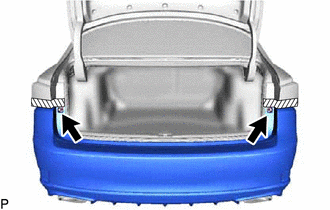

    2. Remove the 2 screws.
      GTY615000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

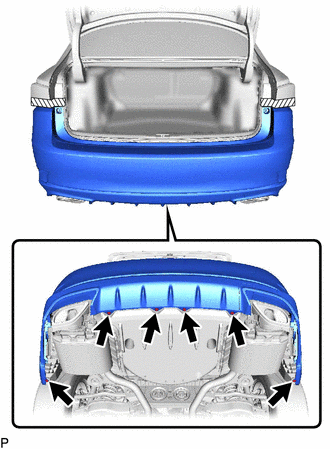

    3. Remove the 6 clips.
      GTY623150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

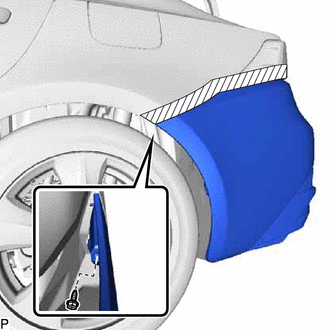

    4. Remove the screw.
      GTY673041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

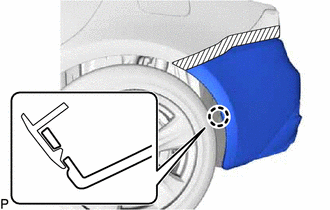

    5. Disengage the claw.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY615012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

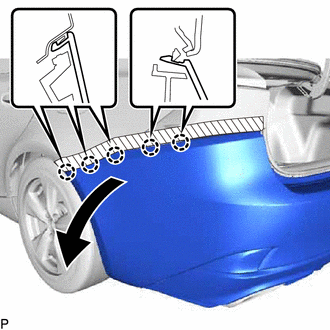

    6. Disengage the 5 claws as shown in the illustration.
      GTY615010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

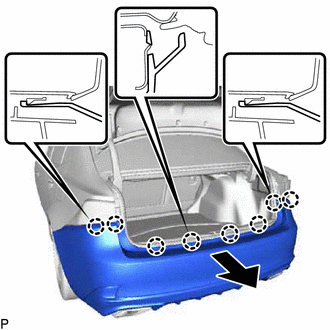

    7. Disengage the 8 claws and remove the rear bumper assembly as shown in the illustration.
      GTY673019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. w/ Intuitive Parking Assist System:
      1. Disconnect the connector.
