Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE NO. 1 REAR BUMPER PLATE

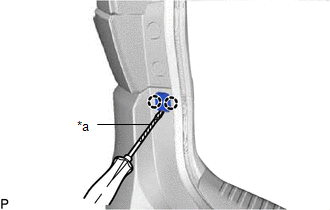

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the No. 1 rear bumper plate.
      GTY470293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

  2. REMOVE REAR BUMPER ASSEMBLY

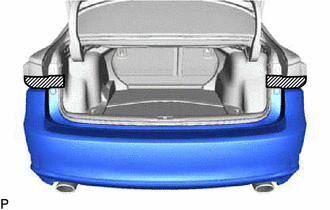

    1. Apply protective tape around the rear bumper assembly as shown in the illustration.
      GTY462240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

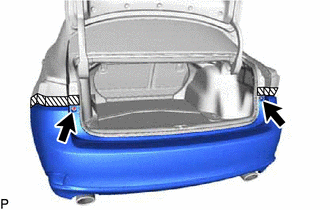

    2. Remove the 2 bolts.
      GTY464010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

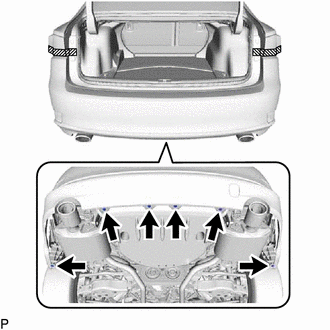

    3. Remove the 6 clips.
      GTY464011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

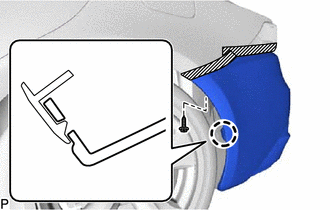

    4. Remove the screw.
      GTY464008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    5. Disengage the claw.

      HINT:

      Use the same procedure for the RH side and LH side.

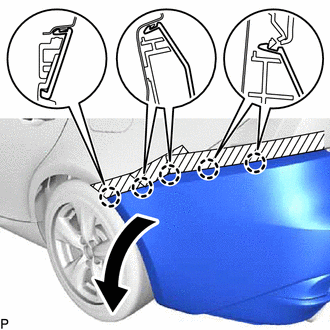

    6. Disengage the 5 claws as shown in the illustration.
      GTY464009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

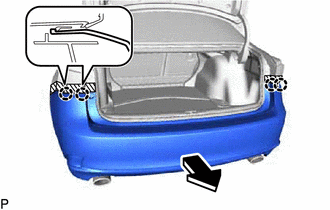

    7. Disengage the 4 claws and remove the rear bumper assembly as shown in the illustration.
      GTY464003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. w/ Intuitive Parking Assist System:
      1. Disconnect the connector.
