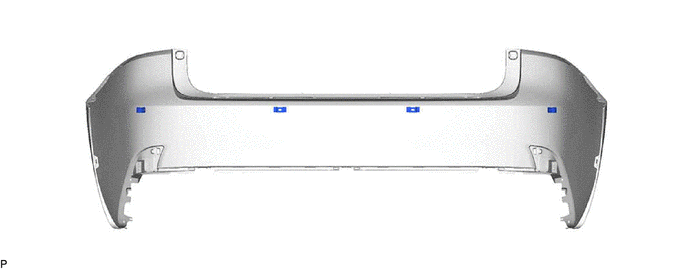

- REMOVE REAR BUMPER PAD
- Remove the rear bumper pad.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Use the same procedure for the RH side and LH side.

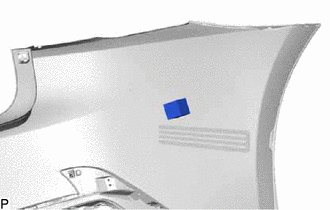

- REMOVE NO. 2 MOULDING TAPE (for Type A)
- Remove the No. 2 moulding tape.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Use the same procedure for the RH side and LH side.

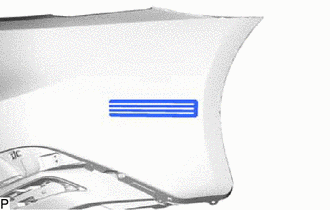

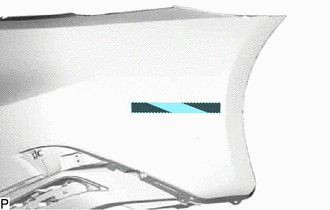

- REMOVE NO. 2 MOULDING TAPE (for Type B)
- Remove the No. 2 moulding tape.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Use the same procedure for the RH side and LH side.

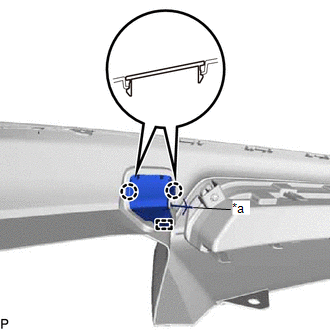

- REMOVE REFLEX REFLECTOR ASSEMBLY LH
- Remove the screw.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage claw and guide to remove the reflex reflector assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REFLEX REFLECTOR ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.

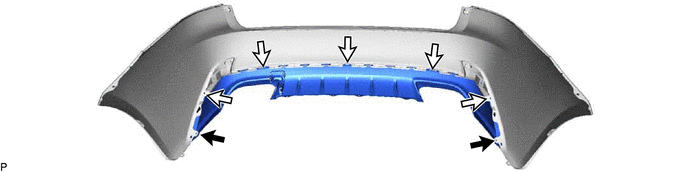

- REMOVE REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Screw |
 |
Clip |
- Remove the 5 clips.
- Disengage the 8 claws and 7 guides to remove the rear bumper center extension sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER PIECE (for Standard)
- Disengage the 4 claws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the hook to remove the rear bumper piece.
- REMOVE REAR BUMPER PIECE (for Sport Package)
- Disengage the 2 claws and guide.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the hook to remove the rear bumper piece.
- REMOVE NO. 3 LUGGAGE ROOM WIRE (w/ Intuitive Parking Assist System)
- Disengage the 4 clamps.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the 4 connectors to remove the No. 3 luggage room wire.
- REMOVE NO. 1 ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 2
- REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)
Refer to PROCEDURE - Step 3
- REMOVE ULTRASONIC SENSOR CLIP (w/ Intuitive Parking Assist System)
- Remove the 4 ultrasonic sensor clips.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR COMBINATION LIGHT COVER LH
Refer to PROCEDURE - Step 1
- REMOVE REAR COMBINATION LIGHT COVER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 2
- REMOVE REAR COMBINATION LIGHT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER UPPER RETAINER LH
Refer to PROCEDURE - Step 5
- REMOVE REAR BUMPER UPPER RETAINER RH
HINT:
Use the same procedure as for the LH side.

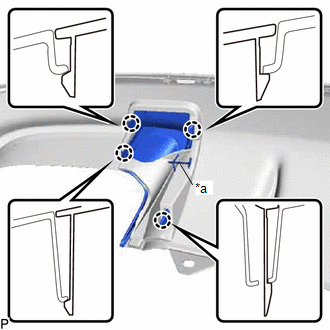

- REMOVE NO. 2 REAR BUMPER SIDE SUPPORT LH
- Using a screwdriver, disengage the 3 clips as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 4 claws and remove the No. 2 rear bumper side support LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 2 REAR BUMPER SIDE SUPPORT RH
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 1 REAR BUMPER SIDE SUPPORT LH
- Remove the grommet.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the guide and claw to remove the No. 1 rear bumper side support LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 1 REAR BUMPER SIDE SUPPORT RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER ENERGY ABSORBER
- Disengage the 2 guides to remove the rear bumper energy absorber.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 8 bolts to rear bumper reinforcement sub-assembly.
