Components [11/2021 - ]

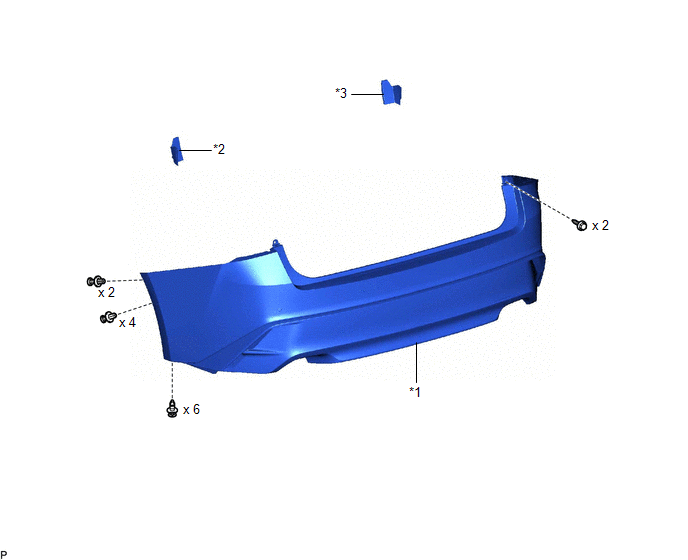

Fig 1: Rear Bumper Replacement Components [11/2021 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR BUMPER ASSEMBLY	*2	REAR COMBINATION LIGHT COVER LH
*3	REAR COMBINATION LIGHT COVER RH	-	-

Fig 2: Rear Bumper Replacement Components [11/2021 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Parking Support Brake System	-	-
*1	NO. 3 LUGGAGE ROOM WIRE	*2	REAR CENTER ULTRASONIC SENSOR
*3	REAR CENTER ULTRASONIC SENSOR RETAINER	*4	REAR CORNER ULTRASONIC SENSOR
*5	REAR CORNER ULTRASONIC SENSOR RETAINER	-	-
•	Non-reusable part	-	-

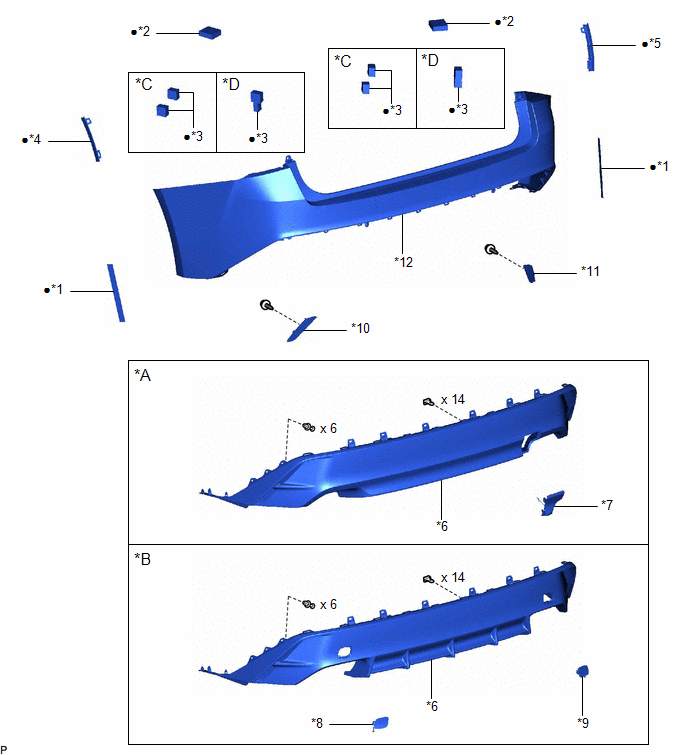

Fig 3: Rear Bumper Replacement Components [11/2021 - ] (3 Of 4)

*A	except 2UR-GSE	*B	for 2UR-GSE
*C	for Type A	*D	for Type B
*1	NO. 1 MOULDING TAPE	*2	NO. 1 REAR BUMPER PAD
*3	NO. 2 REAR BUMPER PAD	*4	REAR BUMPER ARM LH
*5	REAR BUMPER ARM RH	*6	REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY
*7	REAR BUMPER PIECE	*8	REAR BUMPER HOLE COVER LH
*9	REAR BUMPER HOLE COVER RH	*10	REFLEX REFLECTOR ASSEMBLY LH
*11	REFLEX REFLECTOR ASSEMBLY RH	*12	REAR BUMPER COVER
•	Non-reusable part	-	-

Fig 4: Rear Bumper Replacement Components With Torque Specifications [11/2021 - ] (4 Of 4)

*1	NO. 1 REAR BUMPER SIDE SUPPORT LH	*2	NO. 1 REAR BUMPER SIDE SUPPORT RH
*3	NO. 2 REAR BUMPER SIDE SUPPORT LH	*4	NO. 2 REAR BUMPER SIDE SUPPORT RH
*5	REAR BUMPER ENERGY ABSORBER	*6	REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
*7	REAR BUMPER UPPER RETAINER LH	*8	REAR BUMPER UPPER RETAINER RH
*9	REAR COMBINATION LIGHT ASSEMBLY LH	*10	REAR COMBINATION LIGHT ASSEMBLY RH
*11	REAR COMBINATION LIGHT SUB-ASSEMBLY LH	*12	REAR COMBINATION LIGHT SUB-ASSEMBLY RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
