Components [04/2013 - 10/2016]

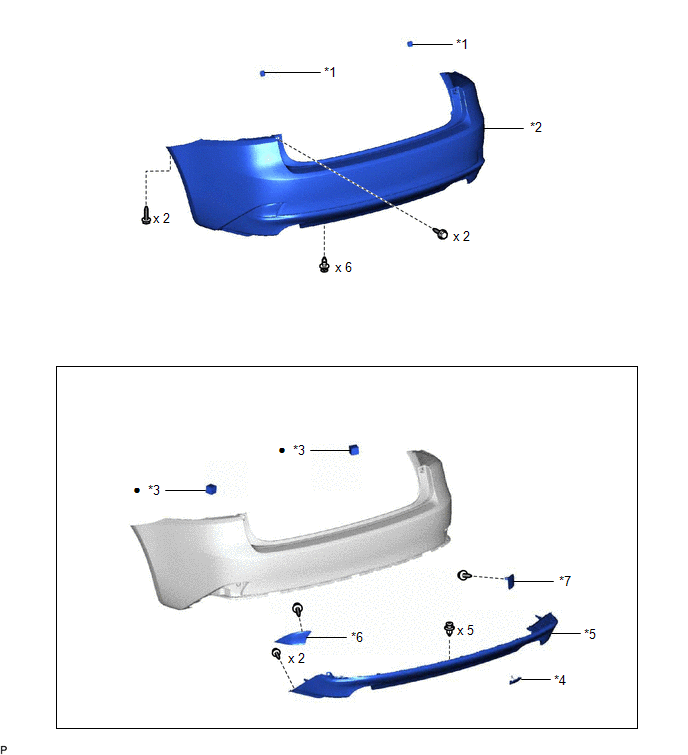

Fig 1: Rear Bumper Replacement Components [04/2013 - 10/2016] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 REAR BUMPER PLATE	*2	REAR BUMPER ASSEMBLY
*3	REAR BUMPER PAD	*4	REAR BUMPER PIECE
*5	REAR LOWER BUMPER COVER	*6	REFLEX REFLECTOR ASSEMBLY LH
*7	REFLEX REFLECTOR ASSEMBLY RH	-	-
•	Non-reusable part	-	-

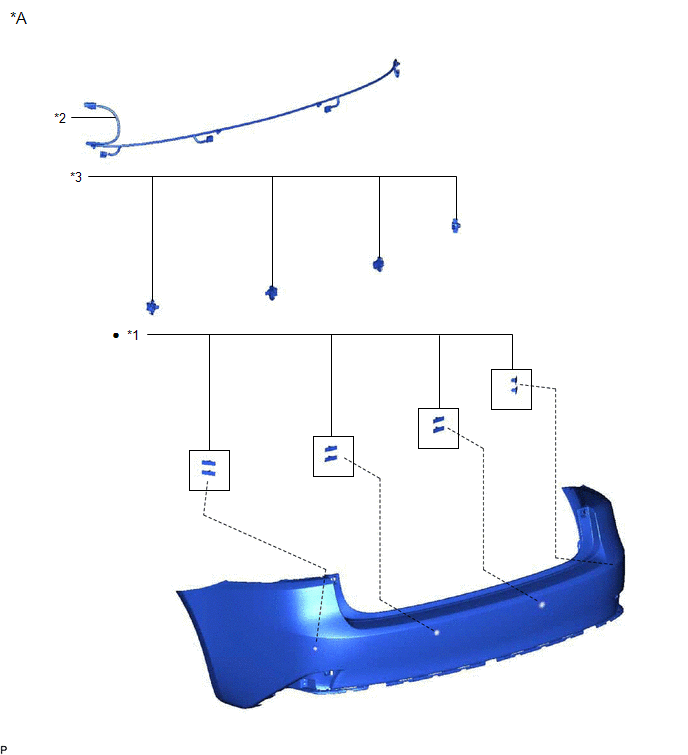

Fig 2: Rear Bumper Replacement Components [04/2013 - 10/2016] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Intuitive Parking Assist System	-	-
*1	NO. 1 ULTRASONIC SENSOR RETAINER	*2	NO. 3 LUGGAGE ROOM WIRE
*3	ULTRASONIC SENSOR WITH CLIP	-	-
•	Non-reusable part	-	-

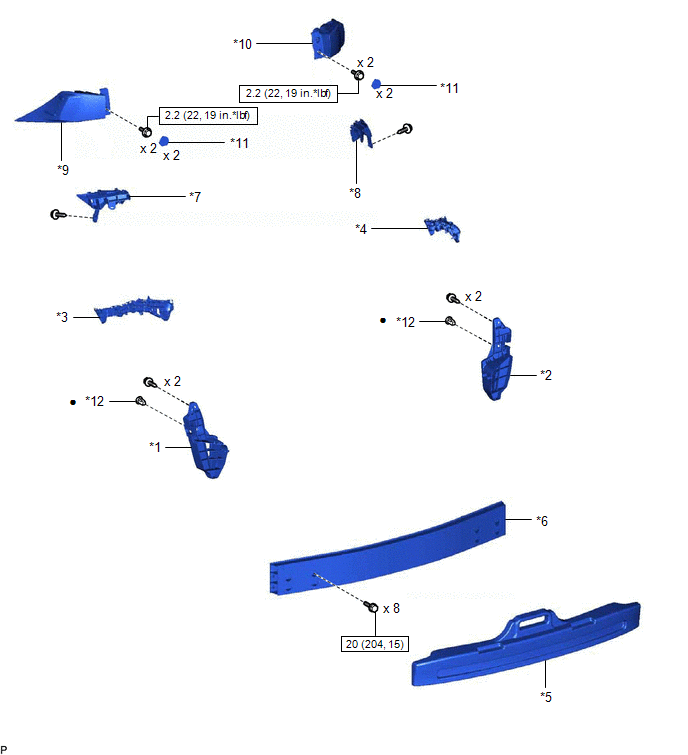

Fig 3: Rear Bumper Replacement Components With Torque Specifications [04/2013 - 10/2016] (3 Of 3)

*1	NO. 1 REAR BUMPER SIDE SUPPORT LH	*2	NO. 1 REAR BUMPER SIDE SUPPORT RH
*3	NO. 2 REAR BUMPER SIDE SUPPORT LH	*4	NO. 2 REAR BUMPER SIDE SUPPORT RH
*5	REAR BUMPER ENERGY ABSORBER	*6	REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
*7	REAR BUMPER UPPER RETAINER LH	*8	REAR BUMPER UPPER RETAINER RH
*9	REAR COMBINATION LIGHT ASSEMBLY LH	*10	REAR COMBINATION LIGHT ASSEMBLY RH
*11	REAR LIGHT COVER	*12	GROMMET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
