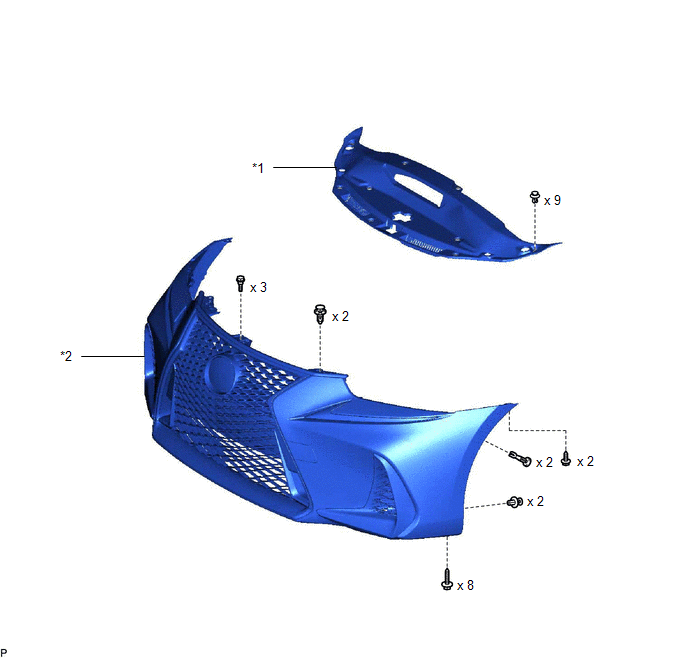

Components [10/2016 - 09/2020]
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | FRONT BUMPER ASSEMBLY |
| *A | w/ Headlight Cleaner System | - | - |
| *1 | HEADLIGHT CLEANER HOSE | *2 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH |
| *3 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH | *4 | HEADLIGHT WASHER COVER LH |
| *5 | HEADLIGHT WASHER COVER RH | - | - |

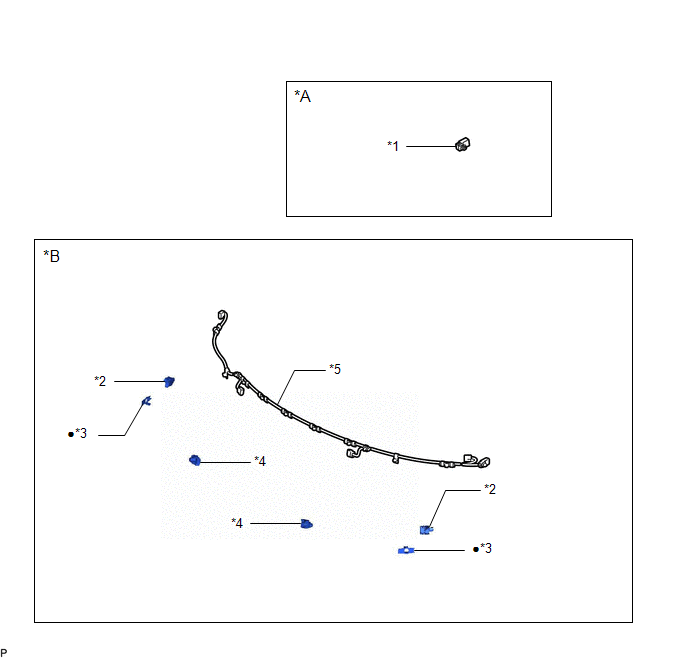

| *A | w/o Intuitive Parking Assist System | *B | w/ Intuitive Parking Assist System |
| *1 | CONNECTOR BRACKET | *2 | NO. 1 ULTRASONIC SENSOR |
| *3 | NO. 1 ULTRASONIC SENSOR RETAINER | *4 | NO. 2 ULTRASONIC SENSOR |
| *5 | NO. 4 ENGINE ROOM WIRE | - | - |
| • | Non-reusable part | - | - |

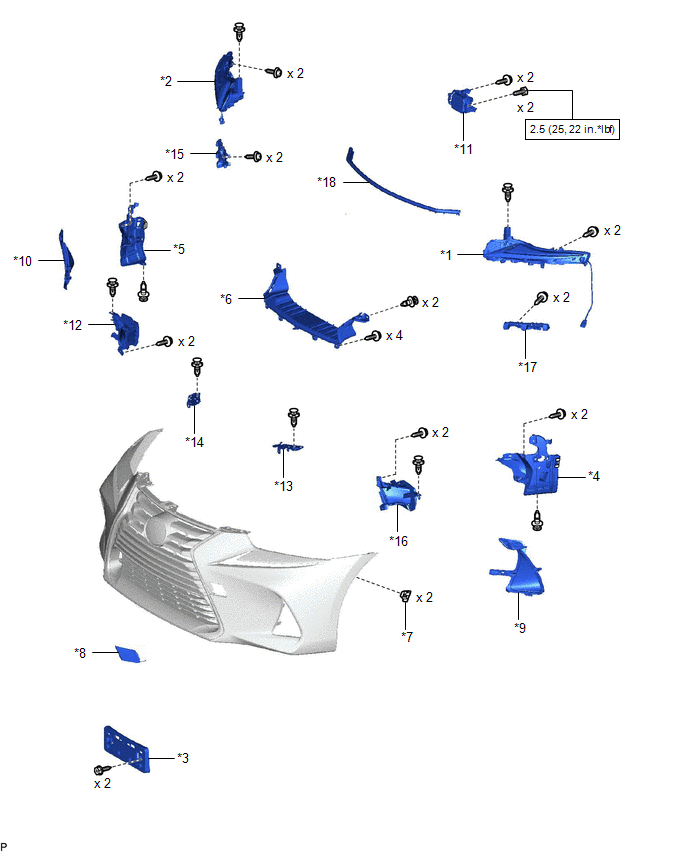

Fig 4: Front Bumper (For Standard) Replacement Components With Torque Specifications [10/2016 - 09/2020] (4 Of 6)
| *1 | CLEARANCE LIGHT ASSEMBLY LH | *2 | CLEARANCE LIGHT ASSEMBLY RH |
| *3 | FRONT BUMPER EXTENSION MOUNTING BRACKET | *4 | FRONT BUMPER SIDE BRACKET LH |
| *5 | FRONT BUMPER SIDE BRACKET RH | *6 | FRONT ENERGY ABSORBER MOUNTING PLATE |
| *7 | FRONT FENDER LINER RETAINER | *8 | LOWER FRONT BUMPER COVER |
| *9 | LOWER RADIATOR GRILLE LH | *10 | LOWER RADIATOR GRILLE RH |
| *11 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *12 | NO. 1 COOL AIR INTAKE DUCT |
| *13 | NO. 1 FRONT BUMPER BRACKET LH | *14 | NO. 1 FRONT BUMPER BRACKET RH |
| *15 | NO. 1 FRONT BUMPER RETAINER BRACKET | *16 | NO. 2 COOL AIR INTAKE DUCT |
| *17 | NO. 2 FRONT BUMPER RETAINER BRACKET | *18 | RADIATOR GRILLE PROTECTOR |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

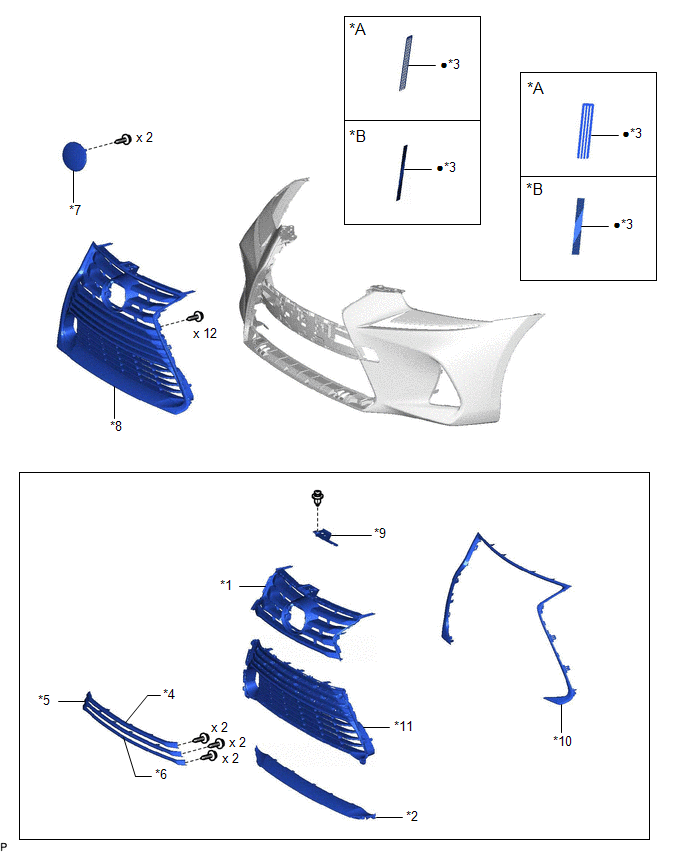

| *A | for Type A | *B | for Type B |
| *1 | INSIDE RADIATOR GRILLE | *2 | LOWER RADIATOR GRILLE MOULDING |
| *3 | NO. 1 MOULDING TAPE | *4 | NO. 1 RADIATOR GRILLE MOULDING |
| *5 | NO. 2 RADIATOR GRILLE MOULDING | *6 | NO. 3 RADIATOR GRILLE MOULDING |
| *7 | RADIATOR GRILLE (OR FRONT PANEL) EMBLEM | *8 | RADIATOR GRILLE ASSEMBLY |
| *9 | RADIATOR GRILLE BRACKET | *10 | RADIATOR GRILLE MOULDING |
| *11 | NO. 2 LOWER RADIATOR GRILLE | - | - |
| • | Non-reusable part | - | - |
Fig 6: Front Bumper (For Standard) Replacement Components With Torque Specifications [10/2016 - 09/2020] (6 Of 6)

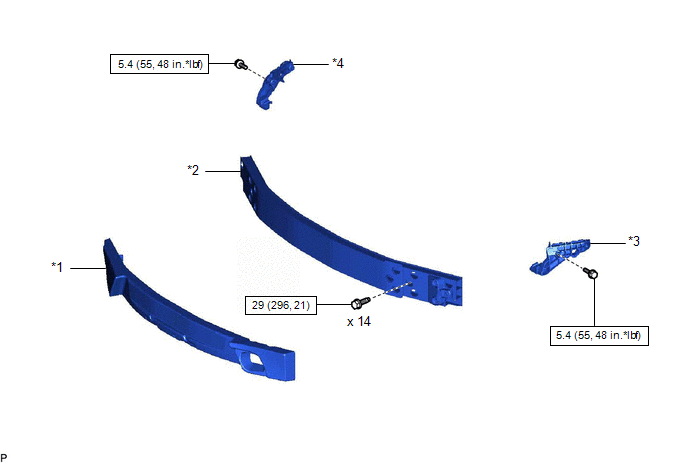

| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT |
| *3 | FRONT BUMPER SIDE RETAINER LH | *4 | FRONT BUMPER SIDE RETAINER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
