Components [10/2017 - 09/2020]

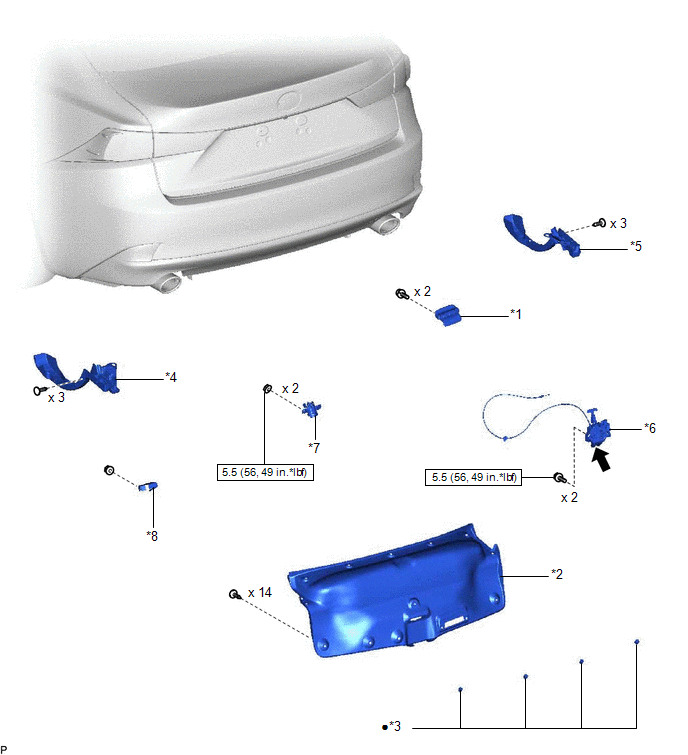

Fig 1: Luggage Compartment Door Replacement Components With Torque Specifications [10/2017 - 09/2020] (1 Of 2)
| *1 | BACK DOOR ASSIST GRIP | *2 | LUGGAGE COMPARTMENT DOOR COVER |
| *3 | LUGGAGE COMPARTMENT DOOR CUSHION | *4 | LUGGAGE COMPARTMENT DOOR HINGE COVER LH |
| *5 | LUGGAGE COMPARTMENT DOOR HINGE COVER RH | *6 | LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY |
| *7 | LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY | *8 | LUGGAGE COMPARTMENT KEY CYLINDER PROTECTOR |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
| *A | w/ Rear View Monitor System | - | - |
| *1 | LICENSE PLATE LIGHT ASSEMBLY | *2 | LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
| *3 | LUGGAGE ELECTRICAL KEY SWITCH | *4 | REAR TELEVISION CAMERA ASSEMBLY |
