Components [04/2013 - 09/2020]

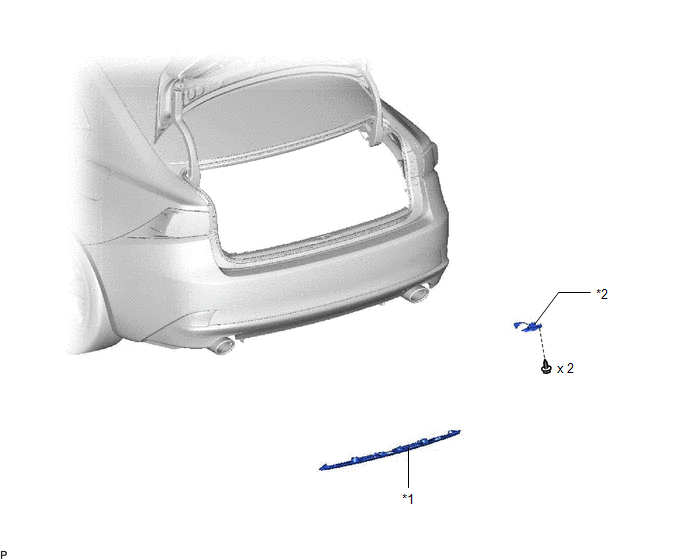

Fig 1: Luggage Compartment Door Opener Outer Switch Replacement Components [04/2013 - 09/2020]
GTY470359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY *2 LUGGAGE ELECTRICAL KEY SWITCH
