Components [04/2013 - 09/2020]

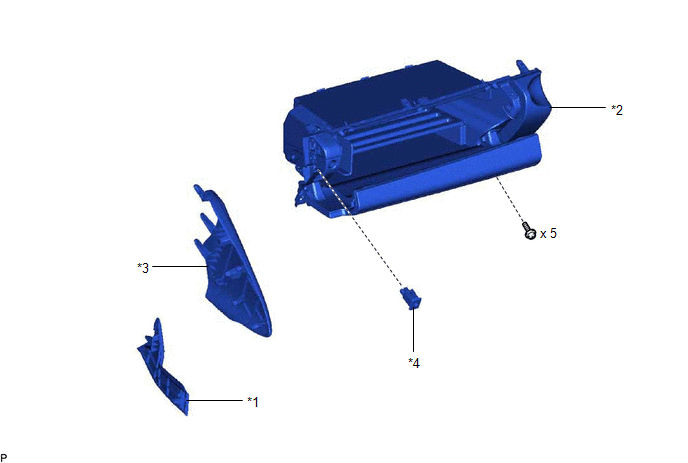

Fig 1: Luggage Compartment Door Opener Main Switch Replacement Components [04/2013 - 09/2020]
GTY470093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT NO. 2 CONSOLE BOX INSERT *2 GLOVE COMPARTMENT DOOR ASSEMBLY
*3 INSTRUMENT PANEL FINISH PANEL END RH *4 LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY
