Components [04/2013 - 09/2020]

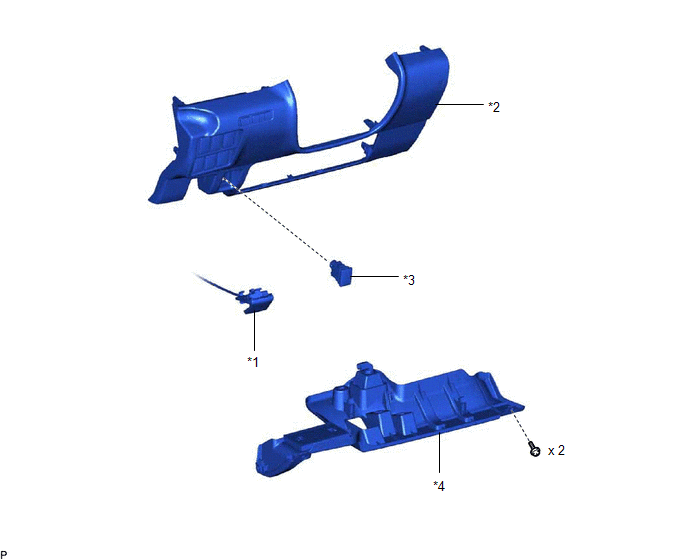

Fig 1: Luggage Compartment Door Opener Inner Switch Replacement Components [04/2013 - 09/2020]
GTY466739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY *2 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*3 LUGGAGE DOOR OPENING SWITCH ASSEMBLY *4 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
