Components [09/2020 - ]

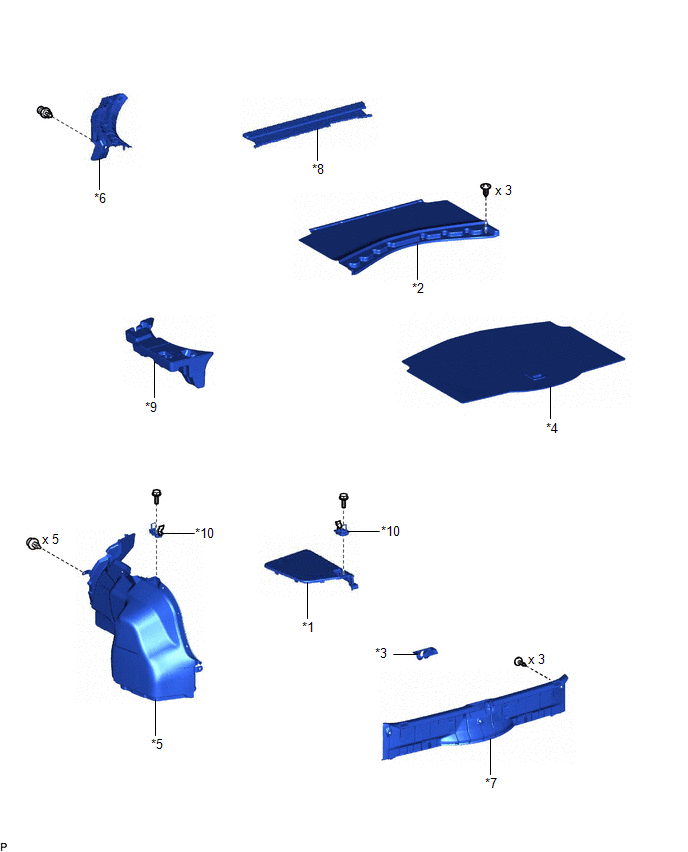

Fig 1: Fuel Lid Opener Motor Assembly Replacement Components [09/2020 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DECK SIDE TRIM BOX LH	*2	FRONT LUGGAGE COMPARTMENT TRIM COVER
*3	LUGGAGE COMPARTMENT DOOR STRIKER COVER	*4	LUGGAGE COMPARTMENT FLOOR MAT
*5	LUGGAGE COMPARTMENT TRIM COVER LH	*6	NO. 2 ROOM PARTITION COVER
*7	REAR LUGGAGE COMPARTMENT TRIM COVER	*8	REAR SEAT SUB FLOOR PANEL
*9	SPARE WHEEL COVER TRAY LH	*10	ROPE HOOK ASSEMBLY

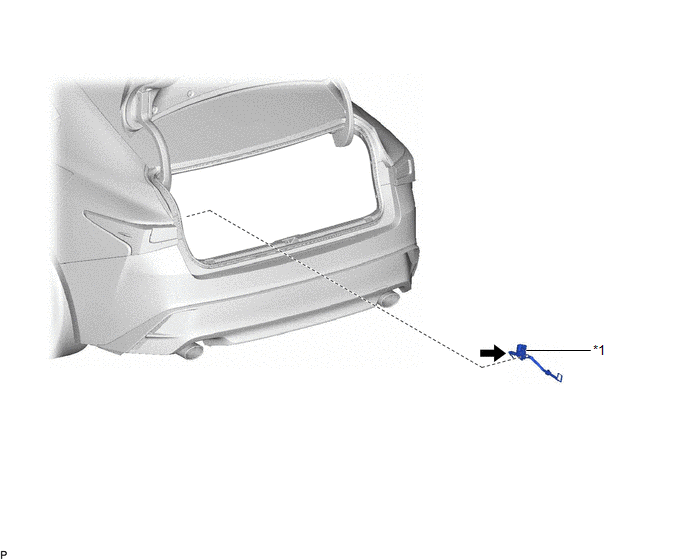

Fig 2: Fuel Lid Opener Motor Assembly Replacement Components [09/2020 - ] (2 Of 2)

*1	FUEL LID LOCK WITH MOTOR ASSEMBLY	-	-
	MP grease	-	-
