Removal [09/2020 - ]: Procedure

  1. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [04/2013 - ]

  2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 3 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 3 [11/2021 - ]

  3. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 7 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 7 [11/2021 - ]

  4. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 26

  5. REMOVE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

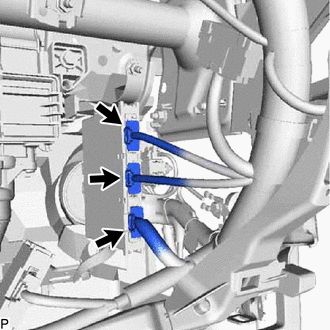

    1. Disconnect each connector.
      GTY459017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

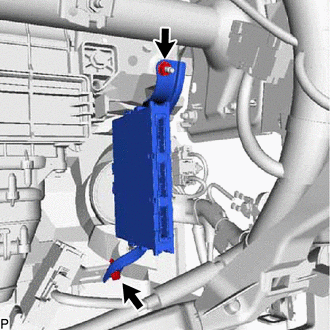

    2. Remove the bolt, nut and certification ECU (smart key ECU assembly).
      GTY459023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
