Removal [04/2013 - ]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [04/2013 - 09/2020] , or refer to REMOVAL [09/2020 - ]

  2. REMOVE CLEARANCE WARNING ECU ASSEMBLY

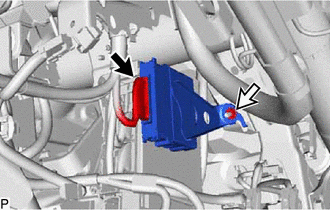

    1. Disconnect the connector.
      GTY465104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and clearance warning ECU assembly.
