Stop Light Switch
>>
Components [09/2020 - ]
Components [09/2020 - ]

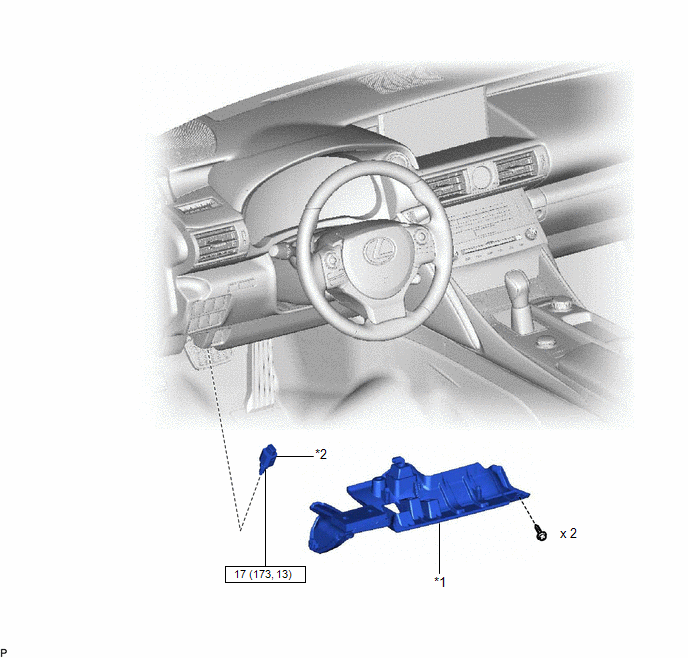

Fig 1: Stop Light Switch Replacement Components With Torque Specifications [09/2020 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*2
STOP LIGHT SWITCH ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
