System Description [10/2016 - 10/2017]

  1. OUTLINE OF COMBINATION METER ASSEMBLY
    1. except F SPORT Models

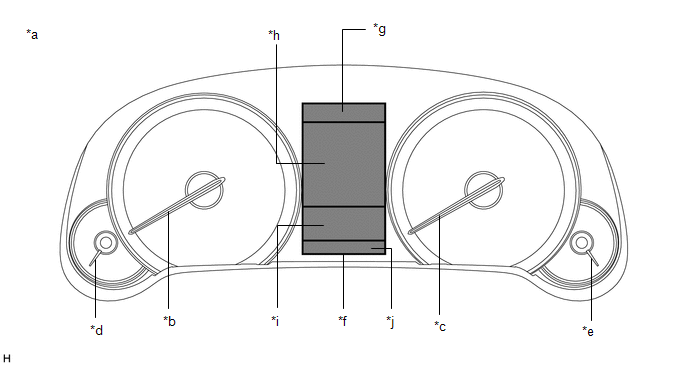

      Fig 1: Outline Of Combination Meter Assembly
      GTY685172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Indication Example *b Tachometer
      *c Speedometer *d Engine Coolant Temperature Receiver Gauge
      *e Fuel Receiver Gauge *f Multi-information Display
      *g Display Area A1 *h Display Area A2
      *i Display Area A3 *j Display Area A4
    2. for F SPORT Models

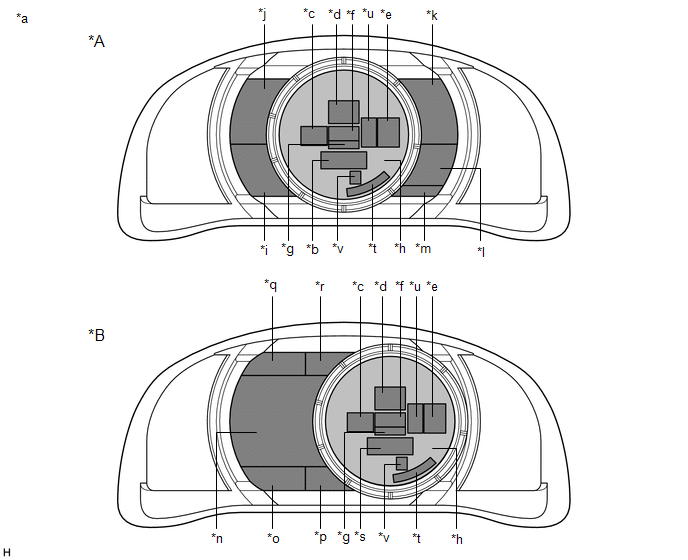

      Fig 2: Outline Of Combination Meter Assembly (for F SPORT Models)
      GTY682493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Movable Meter Ring not Activated *B Movable Meter Ring Activated
      *a Indication Example *b Display Area B1
      *c Display Area B2 *d Display Area B3
      *e Display Area B4 *f Display Area B5
      *g Display Area B6 *h Display Area B7
      *i Display Area B8 *j Display Area B9
      *k Display Area B10 *l Display Area B11
      *m Display Area B12 *n Display Area B13
      *o Display Area B14 *p Display Area B15
      *q Display Area B16 *r Display Area B17
      *s Display Area B18 *t Display Area B19
      *u Display Area B20 *v Display Area B21
  2. INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY
    1. Meter or Gauge
      Item Condition Input/Output Communication Line Signal Component Display Area
      Speedometer
      • Gauge*1
      • Displayed*2
      		 Input CAN Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) B3, B21
      - Direct line Vehicle speed pulse input signal
      Output CAN Vehicle speed signal (meter to other) Related ECUs
      Speed tolerance A signal
      Speed tolerance B signal
      Direct line Vehicle speed pulse output signal Related ECUs
      Tachometer
      • Gauge*1
      • Displayed*2
      		 Input CAN Engine RPM data signal ECM B7
      Fuel receiver gauge
      • Gauge*1
      • Displayed*2
      		 Input CAN Fuel consumption signal ECM B10, B14
      Engine RPM data signal
      Starter signal
      Shift position P signal
      Shift position R signal
      Shift position N signal
      Shift position D signal
      Mode indicator signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Direct line Fuel level signal
      • Fuel sender gauge assembly
      • No. 2 fuel sender gauge assembly
      Output CAN Fuel gauge state signal Related ECUs
      Fuel gauge initial signal
      Fuel direct data signal
      Fuel initial signal
      Fuel average signal
      Fuel consumption scale signal
      Engine coolant temperature receiver gauge
      • Gauge*1
      • Displayed*2
      		 Input CAN Engine coolant temperature signal ECM B9, B16
      1. *1: except F SPORT Models
      2. *2: for F SPORT Models
    2. Warning or Indicator
      Item Condition Input/Output Communication Line Signal Component
      Master warning light Comes on/Blinks Input CAN Each warning signal Related ECUs
      Direct line
      Door open warning light Comes on Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage courtesy switch signal
      Brake warning light Comes on Input CAN Brake warning light control flag signal Brake actuator assembly (Skid control ECU)
      Direct line Brake fluid level warning switch signal Brake master cylinder reservoir assembly (Brake fluid level warning switch)
      Vacuum warning switch Vacuum warning switch assembly*3
      Driver or front passenger seat belt warning light Comes on/Blinks Input CAN Driver seat belt buckle switch signal Main body ECU (Multiplex network body ECU)
      Parking brake switch signal
      Shift position P signal ECM
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Front passenger seat occupant detection status signal Airbag sensor assembly
      Front passenger seat belt buckle switch detection status signal
      Rear seat belt warning light - Input CAN Parked condition signal Main body ECU (Multiplex network body ECU)
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Direct line Rear left seat belt buckle switch signal
      • Rear seat inner with center belt assembly LH*10
      • Rear No. 1 seat inner belt assembly *11
      Rear center seat belt buckle switch signal
      Rear right seat belt buckle switch signal Rear No. 1 seat inner belt assembly RH
      Comes on Output Direct line Rear left seat belt warning output signal Air conditioning control assembly
      Rear center seat belt warning output signal
      Rear right seat belt warning output signal
      SRS warning light Comes on Input CAN Airbag warning light control request signal Airbag sensor assembly
      Test mode signal ECM
      Charge warning light*2 Comes on Input CAN Charge light indicator signal ECM
      Direct line Charge L terminal signal*7 Generator assembly
      EPS warning light Comes on/Blinks Input CAN EPS warning light request signal Power steering ECU assembly
      MIL (Check engine warning light) Comes on/Blinks Input CAN MIL request signal ECM
      PCS warning light Comes on/Blinks Input CAN PCS indicator display signal Driving support ECU assembly
      Slip indicator light Comes on/Blinks Input CAN Slip indicator signal Brake actuator assembly (Skid control ECU)
      Slip indicator light and flashing request signal 4WD control ECU*1
      VSC OFF indicator light Comes on Input CAN VSC OFF light signal Brake actuator assembly (Skid control ECU)
      ABS warning light Comes on/Blinks Input CAN ABS warning light control flag signal Brake actuator assembly (Skid control ECU)
      Tire pressure warning light Comes on Input CAN TPMS warning indicator condition 1 signal Main body ECU (Multiplex network body ECU)
      Fuel level warning light Comes on Input Direct line Fuel level signal Fuel sender gauge assembly
      No. 2 fuel sender gauge assembly
      Automatic high beam indicator light Comes on Input CAN Smart Beam indicator signal Main body ECU (Multiplex network body ECU)
      High beam indicator light Comes on Input CAN High beam headlight request signal Main body ECU (Multiplex network body ECU)
      Tail indicator light*6 Comes on Input CAN Taillight request signal Main body ECU (Multiplex network body ECU)
      Head indicator light*4 Comes on Input CAN Low beam headlight request signal Main body ECU (Multiplex network body ECU)
      Turn indicator light Blinks Input Direct line LH turn signal switch signal Windshield wiper switch assembly
      RH turn signal switch signal
      Hazard warning switch signal Air conditioner control assembly
      CAN Hazard light activation request signal DCM (Telematics transceiver)*9
      - Output CAN Turn light state signal Related ECUs
      Hazard switch state signal
      Direct line LH turn signal switch signal Each turn signal light
      RH turn signal switch signal
      Hazard warning switch signal
      Eco driving indicator light Comes on Input CAN Ecology light indicator signal ECM
      Clearance sonar indicator light*8 Comes on Input CAN CLSO main switch indicator turn ON signal Clearance warning ECU assembly
      AFS OFF indicator light*5 Comes on/Blinks Input CAN AFS OFF indicator request signal Headlight swivel ECU assembly
      Parking brake warning light Comes on Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU)
      1. *1: w/ Four Wheel Drive Control System
      2. *2: for F SPORT Models
      3. *3: for 8AR-FTS
      4. *4: for Speedometer with Imperial Units for Main Scale
      5. *5: w/ AFS (Adaptive Front-lighting System)
      6. *6: for Speedometer with Metric Units for Main Scale
      7. *7: for 2GR-FSE
      8. *8: w/ Intuitive Parking Assist System
      9. *9: w/ Manual (SOS) Switch
      10. *10: for Fixed Seat Type
      11. *11: for Fold Down Seat Type
    3. Multi-information Display
      Item Condition Input/Output Communication Line Signal Component Display Area
      Opening - - - - - A1, A2, A3, B7
      Ending - - - - - B7
      ODO meter Displayed Input CAN Vehicle speed pulse signal integrated value signal Brake actuator assembly (Skid control ECU) A1, B11, B18
      Vehicle speed (SP1) signal
      Direct line ODO/TRIP change switch signal Trip switch
      - Output CAN Odo meter unit signal Related ECUs
      Odo meter signal
      TRIP meter Displayed Input CAN Vehicle speed pulse signal integrated value signal Brake actuator assembly (Skid control ECU) A1, B11, B18
      Vehicle speed (SP1) signal
      Direct line ODO/TRIP change switch signal Trip switch
      - Output CAN TRIP A signal DCM (Telematics transceiver)
      TRIP B signal
      Engine oil maintenance mileage*3 Displayed Input CAN Engine oil maintenance mileage signal ECM A1, B11, B18
      Engine oil mileage unit signal
      Engine oil maintenance screen inversion demand signal
      Current fuel consumption (Bar type) Displayed Input CAN Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) A2, B1, B13
      Fuel consumption signal ECM
      Engine RPM data signal
      - Output CAN Drive monitor unit signal 0 Radio receiver assembly
      Drive monitor display signal (Current fuel consumption)
      Average fuel consumption (After reset) Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      Fuel consumption signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Vehicle speed pulse signal integrated value signal
      Direct line Reset signal Steering pad switch assembly
      - Output CAN Drive monitor unit signal 6 Radio receiver assembly
      Drive monitor display signal (Total average fuel consumption)
      Average fuel consumption (After start) Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      Fuel consumption signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Vehicle speed pulse signal integrated value signal
      Average fuel consumption (After refuel) Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      Fuel consumption signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Vehicle speed pulse signal integrated value signal
      - Output CAN Drive monitor display signal (Average fuel consumption after refuel) Radio receiver assembly
      Average speed (After reset) Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Vehicle speed pulse signal integrated value signal
      Direct line Reset signal Steering pad switch assembly
      Average speed (After start) Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Vehicle speed pulse signal integrated value signal
      - Output CAN Drive monitor unit signal 1 Radio receiver assembly
      Drive monitor display signal (After starting average speed)
      Elapsed time (After reset) Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      Direct line Reset signal Steering pad switch assembly
      Elapsed time (After start) Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      - Output CAN Drive monitor display signal (After starting driving time) Radio receiver assembly
      Distance (Range) Displayed Input CAN Engine type information 1 signal ECM A2, B1, B13
      Engine type information 2 signal
      Engine type information 3 signal
      Engine type information 4 signal
      Engine RPM data signal
      Drivetrain information signal
      Fuel consumption signal
      Vehicle speed pulse signal integrated value signal Brake actuator assembly (Skid control ECU)
      Direct Line Fuel level signal Fuel sender gauge assembly
      No. 2 fuel sender gauge assembly
      - Output CAN Drive monitor unit signal 4 Radio receiver assembly
      Drive monitor display signal (Drivable distance)
      Distance (After start) Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Vehicle speed pulse signal integrated value signal
      Eco driving indicator zone Displayed Input CAN Eco-zone indicator level signal ECM A2, B1, B13
      Other (Blank) - - - - - A2, B1, B13
      Boost pressure meter*2, *4 Displayed Input CAN Gauge pressure of surge tank signal ECM B13
      TPMS unit information 0 signal Main body ECU (Multiplex network body ECU)
      Engine oil temperature receiver gauge*2, *4 Displayed Input CAN Engine oil temperature of engine signal ECM B13
      Engine oil pressure receiver gauge*2, *4 Displayed Input CAN Engine oil pressure of engine signal ECM B13
      TPMS unit information 0 signal Main body ECU (Multiplex network body ECU)
      Tire pressure*12 Displayed Input CAN TPMS FL (ID1) tire pressure information signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      TPMS FR (ID2) tire pressure information signal
      TPMS RL (ID3) tire pressure information signal
      TPMS RR (ID4) tire pressure information signal
      TPMS SP (ID5) tire pressure information signal
      TPMS FL (ID1) tire indicator information 0 signal
      TPMS FR (ID2) tire indicator information 0 signal
      TPMS RL (ID3) tire indicator information 0 signal
      TPMS RR (ID4) tire indicator information 0 signal
      TPMS SP (ID5) tire indicator information 0 signal
      TPMS indicator number information 0 signal
      TPMS unit information 0 signal
      TPMS display request bit 0 signal
      TPMS variation signal
      Sway warning Displayed Input CAN SWS rest advisory display signal Forward recognition camera A2, B13
      G monitor*2 Displayed Input CAN GL1, GX error signal Yaw rate sensor assembly B13
      GL2, GY error signal
      GL1, GX invalidation/validation signal
      GL2, GY invalidation/validation signal
      GL1, GX sensor signal
      GL2, GY sensor signal
      Sensor type identification signal
      G sensor zero point un-corrected status signal Brake actuator assembly (Skid control ECU)
      GL1 zero point value signal
      GL2 zero point value signal
      Direct line Change switch signal Steering pad switch assembly
      Drive information tab Displayed - - - - A2, B13
      Navigation tab*9 Displayed Input CAN/Local bus/GVIF*9 Navigation signal Radio receiver assembly A2, B13
      Audio tab Displayed Input CAN/Local bus/GVIF*9 Audio signal Radio receiver assembly A2, B13
      Driving Support tab Displayed Input CAN - Driving support ECU assembly A2, B13
      Forward recognition camera
      Message tab Displayed - - - - A2, B13
      Setting tab Displayed - - - - A2, B13
      Shift position Displayed Input CAN Shift position P signal ECM A3, B5
      Shift position R signal
      Shift position N signal
      Shift position D signal
      Shift gear signal
      Mode indicator signal
      Sports mode enable signal
      Transmission oil temperature range signal
      GEAR shift indicator Displayed Input CAN Shift up signal ECM A3, B5
      Shift down signal
      SPORT indicator*15 Displayed Input CAN Integrated sport mode indicator ECM A3, B6
      SPORT S indicator*10 Displayed Input CAN Integrated sport mode signal ECM A3, B6
      SPORT S+ indicator*10 Displayed Input CAN AVS (TEMS) light signal Absorber control ECU A3, B6
      Integrated sport mode signal ECM
      ECO/ECO MODE indicator Displayed Input CAN Eco mode indicator signal ECM A3, B6
      SNOW indicator Displayed Input CAN ECT SNOW indicator signal ECM A3, B20
      Cruise SET indicator light Displayed Input CAN Cruise set indicator signal Driving support ECU assembly A3, B19
      Cruise main indicator light Displayed Input CAN Following distance time signal Driving support ECU assembly A3, B19
      Cruise control warning signal
      CRUISE operation indicator signal
      Radar cruise main indicator light Displayed Input CAN Following distance time signal Driving support ECU assembly A3, B19
      Cruise control warning signal
      CRUISE operation indicator signal
      Lane departure alert indicator light Displayed Input CAN Indicator display signal Forward recognition camera A3, B19
      Charge warning light*1 Displayed Input CAN Charge light indicator signal ECM A3
      Direct line Charge L terminal signal*6 Generator assembly
      Outside temp Displayed Input CAN Ambient temperature display signal Air conditioning amplifier assembly A2, B8, B17
      0 or 0.5°C below decimal point of ambient temperature display switch signal
      Icy street warning Displayed Input CAN Ambient temperature display signal Air conditioning amplifier assembly A2, B8, B17
      0 or 0.5°C below decimal point of ambient temperature display switch signal
      Clock Displayed - - - - A2, B8, B15
      Phone (Received call) Displayed Input CAN/Local bus/GVIF*9 Phone (Received call) signal Radio receiver assembly A2, B1, B13
      Turn-by-turn navigation*9 Displayed Input CAN/Local bus/GVIF*9 Turn-by-turn signal Radio receiver assembly A2, B1, B13
      Vehicle speed warning indicator*2 Displayed Input CAN Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) B5
      REV indicator*2 Displayed Input CAN Engine RPM data signal ECM B7
      REV peak*2 Displayed Input CAN Engine RPM data signal ECM B7
      ACCESSORY Displayed Input CAN Display request of vehicle mode signal Certification ECU (Smart key ECU assembly) A1, B12, B15
      IGNITION ON Displayed Input CAN Display request of vehicle mode signal Certification ECU (Smart key ECU assembly) A1, B12, B15
      AWD TEST MODE*11 Displayed Input CAN 4WD warning ON and flashing request signal 4WD control ECU A2, B1, B13
      CDY-2 Displayed Input CAN CDY mode signal ECM A2, B1, B13
      CDY-4 Displayed Input CAN CDY mode signal ECM A2, B1, B13
      ADJUSTING FORWARD CAMERA Displayed Input CAN Camera adjustment mode text display signal Forward recognition camera A2, B1, B13
      ADJUSTING FRONT RADAR BEAM Displayed Input CAN Inspection mode for ACC signal Driving support ECU assembly A2, B1, B13
      ERROR ADJUSTING FRONT RADAR BEAM Displayed Input CAN FRD adjustment signal Driving support ECU assembly A2, B1, B13
      ADJUSTING FRONT RADAR BEAM VERTICAL Displayed Input CAN FRD adjustment signal Driving support ECU assembly A2, B1, B13
      ADJUSTING FRONT RADAR BEAM HORIZONTAL Displayed Input CAN FRD adjustment signal Driving support ECU assembly A2, B1, B13
      CHECKING PRE-CRASH BRAKE Displayed Input CAN Inspection mode signal Driving support ECU assembly A2, B1, B13
      Headlight System Uninitialized Visit Your Dealer*17 Displayed Input CAN LED headlight indicator signal No. 1 headlight ECU sub-assembly LH A2, B1, B13
      BRAKE! Displayed Input CAN PCS warning message signal Driving support ECU assembly A2, B1, B13
      Push and Hold Engine Switch for Emergency Stop Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Shift to N and Press Engine Switch to Restart Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Engine Stopped Shift to P Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      Shift position P signal
      Shift position N signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Engine Stopped Stop in a Safe Place Displayed Input CAN Engine RPM data signal ECM A2, B1, B13
      Shift position P signal
      Shift position N signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Dynamic radar cruise control or Lane departure alert warning reminder indicator Displayed Input CAN ACC display ID 1 signal Driving support ECU assembly A2, B1, B13
      ACC display ID 2 signal
      Braking Power Low Stop in a Safe Place See Owner's Service Information Displayed Input CAN Brake warning light control flag signal Brake actuator assembly (Skid control ECU) A2, B1, B13
      Accelerator Stuck Depress Brake to Stop Displayed Input CAN BOS multi-information request signal ECM A2, B1, B13
      Each door ajar (vehicle being driven) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage courtesy switch signal
      Hood courtesy switch signal
      Steering wheel signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Each door ajar (vehicle stopped, engine switch on (IG)) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage courtesy switch signal
      Hood courtesy switch signal
      Steering wheel signal
      Clearance sonar detection (image display)*8 Displayed Input CAN Clearance sonar main switch indicator turn ON signal Clearance warning ECU assembly A2, B1, B13
      Cluster indicator turn ON request signal
      Front center area information signal
      Front left area information signal
      Front right area information signal
      Rear center area information signal
      Rear left area information signal
      Rear right area information signal
      Sensor diag request signal
      Parking Assist Malfunction*8 Displayed Input CAN Sensor diag request signal Clearance warning ECU assembly A2, B1, B13
      Clean Parking Assist Sensor*8 Displayed Input CAN Sensor diag request signal Clearance warning ECU assembly A2, B1, B13
      Power Turned Off to Save Battery Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Shift to P Before Exiting Vehicle Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Power Steering Malfunction Steering Power Low Visit Your Dealer Displayed Input CAN Multi-information request signal Power steering ECU assembly A2, B1, B13
      Steering Power Low Visit Your Dealer Displayed Input CAN Multi-information request signal Power steering ECU assembly A2, B1, B13
      Power Steering Malfunction Visit Your Dealer Displayed Input CAN Multi-information request signal Power steering ECU assembly A2, B1, B13
      Release Parking Brake Displayed Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Key Not Detected Check Key Location Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Release Accelerator*7 Displayed Input CAN GOS multi information request signal ECM A2, B1, B13
      Slippery Road Cannot Shift to Lower Gear Displayed Input CAN Reject flag of range for low gear signal ECM A2, B1, B13
      Lane Departure Alert Driver Attention Required Displayed Input CAN Request for driver action display signal Forward recognition camera A2, B1, B13
      LDA Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera A2, B1, B13
      LDA Steering Assist Unavailable Hold Steering Wheel Displayed Input CAN Hands free caution text display signal Forward recognition camera A2, B1, B13
      Check Engine Visit Your Dealer Displayed Input CAN MIL request signal ECM A2, B1, B13
      Check Engine Reduced Engine Power Visit Your Dealer Displayed Input CAN MIL request signal ECM A2, B1, B13
      Reduced Engine Power Visit Your Dealer Displayed Input CAN MIL request signal ECM A2, B1, B13
      SRS Airbag System Malfunction Visit Your Dealer Displayed Input CAN SRS warning light control request signal Airbag sensor assembly A2, B1, B13
      Antilock Brake System Malfunction Visit Your Dealer Displayed Input CAN ABS warning light Control Flag signal Brake actuator assembly (Skid control ECU) A2, B1, B13
      Engine Coolant Temp High Stop in a Safe Place See Owner's Service Information Displayed Input CAN Engine coolant temperature signal ECM A2, B1, B13
      Radar Cruise Control Unavailable Clean Sensor Displayed Input CAN Cruise control warning signal Driving support ECU assembly A2, B1, B13
      Detection of dirt adhesion on sensor signal
      Radar Cruise Control Unavailable Displayed Input CAN Cruise control warning signal Driving support ECU assembly A2, B1, B13
      Detection of dirt adhesion on sensor signal
      Bad weather detection signal
      Access System with Elec. Key Malfunction See Owner's Service Information Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Blind Spot Monitor Unavailable*13 Displayed Input CAN BSD module status signal Blind spot monitor sensor LH A2, B1, B13
      Cruise Control Malfunction Visit Your Dealer Displayed Input CAN Cruise control warning signal Driving support ECU assembly A2, B1, B13
      Stop holding signal
      Lane Departure Alert Malfunction Visit Your Dealer Displayed Input CAN Fault condition text display signal Forward recognition camera A2, B1, B13
      Forward Camera System Unavailable Displayed Input CAN PCS TEMP message (Camera) signal Driving support ECU assembly A2, B1, B13
      Lane Departure Alert Unavailable Displayed Input CAN Steering assist unusable text display signal Forward recognition camera A2, B1, B13
      Lane Departure Alert Turned On Steering Assist Active Displayed Input CAN LKA MODE text display signal Forward recognition camera A2, B1, B13
      Lane Departure Alert Turned On Steering Assist Inactive Displayed Input CAN LKA MODE text display signal Forward recognition camera A2, B1, B13
      Forward Camera System Unavailable Clean Windshield Displayed Input CAN PCS DUST message (Camera) signal Driving support ECU assembly A2, B1, B13
      Pre-Collision System Malfunction Visit Your Dealer Displayed Input CAN PCS fault condition text display signal Driving support ECU assembly A2, B1, B13
      Blind Spot Monitor System Malfunction Visit Your Dealer*13 Displayed Input CAN BSD module status signal Blind spot monitor sensor LH A2, B1, B13
      Oil Pressure Low Stop in a Safe Place See Owner's Service Information Displayed Input CAN Demand of engine oil pressure light signal*7 ECM A2, B1, B13
      Engine RPM data signal
      Direct line Engine oil pressure signal*6 Engine oil pressure switch assembly
      Transmission Fluid Temp High See Owner's Service Information Displayed Input CAN AT oil temperature warning signal ECM A2, B1, B13
      AWD System Malfunction 2WD Mode Engaged Visit Your Dealer*11 Displayed Input CAN 4WD warning ON and flashing request signal 4WD control ECU A2, B1, B13
      Lane Departure Alert Unavailable Below Approx 50km/h Displayed Input CAN Speed condition failure text display signal Forward recognition camera A2, B1, B13
      Lane Departure Alert Unavailable Below Approx 32MPH Displayed Input CAN Speed condition failure text display signal Forward recognition camera A2, B1, B13
      Lane Departure Alert Unavailable at Current Speed Displayed Input CAN Speed condition failure text display signal Forward recognition camera A2, B1, B13
      Dynamic radar cruise control or Lane departure alert indicator Displayed Input CAN ACC display ID 1 signal Driving support ECU assembly A2, B1, B13
      ACC display ID 2 signal
      White line symbol left side signal Forward recognition camera
      White line symbol right side signal
      Engine Stopped Steering Power Low Displayed Input CAN Multi-information request signal Power steering ECU assembly A2, B1, B13
      Turn Off Vehicle Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Would You Like to Take a Rest? Displayed Input CAN SWS rest advisory display signal Forward recognition camera A2, B1, B13
      Please Take a Rest Displayed Input CAN SWS rest advisory display signal Forward recognition camera A2, B1, B13
      Key Left inside Vehicle Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Turn Lights Off Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Lighting system state signal
      Moon Roof Open*14 Displayed Input CAN Sliding roof open warning request signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Window Open Displayed Input CAN Power window open warning request signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Window / Moon Roof Open*14 Displayed Input CAN Power window open warning request signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Sliding roof open warning request signal
      Depress Brake and Then Touch Key to Engine Switch Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Depress Brake and Then Start Engine Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Steering Wheel Lock Press Engine Switch while Turning Wheel Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Drive-Start Control Malfunction Visit Your Dealer*7 Displayed Input CAN GOS multi information request signal ECM A2, B1, B13
      Brake Override Malfunction Visit Your Dealer Displayed Input CAN BOS multi-information request signal ECM A2, B1, B13
      Key Battery Low Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      Engine Oil Level Low Add or Replace Displayed Input CAN Engine coolant temperature signal ECM A2, B1, B13
      Direct line Engine oil level signal Engine oil level sensor
      Headlight System Malfunction Visit Your Dealer Displayed Input CAN Smart beam indicator signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      LED headlight indicator signal*17 No. 1 headlight ECU sub-assembly LH
      AFS OFF indicator request signal*5 Headlight swivel ECU assembly
      Headlight leveling indicator signal
      • No. 1 headlight ECU sub-assembly LH*17
      • Headlight swivel ECU assembly*5
      Starter signal ECM
      Accelerator and Brake Pedals Depressed Simultaneously Displayed Input CAN BOS multi-information request signal ECM A2, B1, B13
      Tire pressure indicator Displayed Input CAN TPMS display request bit 0 signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Windshield Washer Fluid Low Displayed Input Direct line Washer fluid level signal Level warning switch assembly A2, B1, B13
      Fuel Low Displayed Input Direct line Fuel level signal
      • Fuel sender gauge assembly
      • No. 2 fuel sender gauge assembly
      		 A2, B1, B13
      Roads May Be Icy Drive with Care Displayed Input CAN Ambient temperature display signal Air conditioning amplifier assembly A2, B1, B13
      Switch signal of 0 or 0.5 below decimal point of ambient temperature display signal
      Traction Control Turned Off Displayed Input CAN TRAC OFF light signal Brake actuator assembly (Skid control ECU) A2, B1, B13
      Starter signal ECM
      Oil Maintenance Required Soon*3 Displayed Input CAN Engine oil change indicator 2 signal ECM A2, B1, B13
      - Output CAN Engine oil monitoring system reset signal 2 ECM
      Maintenance required soon*16 Displayed Input CAN Oil change indicator signal ECM A2, B1, B13
      Starter signal
      Oil Maintenance Required Visit Your Dealer*3 Displayed Input CAN Engine oil change indicator 2 signal ECM A2, B1, B13
      - Output CAN Engine oil monitoring system reset signal 2 ECM
      Maintenance required*16 Displayed Input CAN Oil change indicator signal ECM A2, B1, B13
      Starter signal
      To Activate Auto High Beam, Switch Headlights to High Beam Displayed Input CAN Smart beam advice signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Depress Brake and Then Start Engine Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) A2, B1, B13
      VSC Turned Off Pre-Collision Brake System Unavailable Displayed Input CAN PB temporary unusable condition text display signal Driving support ECU assembly A2, B1, B13
      VSC OFF light signal Brake actuator assembly (Skid control ECU)
      Pre-Collision System Unavailable Displayed Input CAN PCS TEMP message (Radar) signal Driving support ECU assembly A2, B1, B13
      High Power Consumption Partial Limit ON AC/Heater Operation Displayed Input CAN A/C load limitation warning signal Air conditioning amplifier assembly A2, B1, B13
      Pre-Collision System Unavailable Clean Sensor Displayed Input CAN PCS DUST message (Radar) signal Driving support ECU assembly A2, B1, B13
      Pre-Collision System Off Displayed Input CAN PCS warning message signal Driving support ECU assembly A2, B1, B13
      PCS warning distance unusable condition text display signal
      PCS distance warning signal
      Each door ajar (vehicle stopped, engine switch off) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) A2, B1, B13
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage courtesy switch signal
      Hood courtesy switch signal
      Steering wheel signal
      1. *1: except F SPORT Models
      2. *2: for F SPORT Models
      3. *3: w/ Oil Maintenance Required Reminder
      4. *4: for 8AR-FTS with Boost Pressure Meter Display
      5. *5: w/ AFS (Adaptive Front-lighting System)
      6. *6: for 2GR-FSE
      7. *7: for 8AR-FTS
      8. *8: w/ Intuitive Parking Assist System
      9. *9: w/ Navigation System
      10. *10: w/ Adaptive Variable Suspension System
      11. *11: w/ Four Wheel Drive Control System
      12. *12: w/ Tire Pressure Warning System with Tire Pressure Display
      13. *13: w/ Blind Spot Monitor System
      14. *14: w/ Sliding Roof System
      15. *15: w/o Adaptive Variable Suspension System
      16. *16: w/ Scheduled Maintenance Required Reminder
      17. *17: w/o AFS (Adaptive Front-lighting System)
    4. Buzzer
      Item Condition Input/Output Communication Line Signal Component
      Restart while driving notification buzzer Sounds continuously Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly)
      Engine switch operation while driving warning buzzer Sounds intermittently Input CAN SW operation buzzer intermittent request signal Certification ECU (Smart key ECU assembly)
      Seat belt warning (for driver side) buzzer Sounds intermittently (Maximum 5 times) Input CAN Driver side seat belt switch signal Main body ECU (Multiplex network body ECU)
      Sounds once/Sounds intermittently Input CAN Driver seat buckle switch signal Main body ECU (Multiplex network body ECU)
      Parking brake switch signal
      Shift position P signal ECM
      Shift position R signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Seat belt warning (for front passenger side) buzzer Sounds once/Sounds intermittently Input CAN Front passenger seat occupant detection status signal Airbag sensor assembly
      Front passenger seat belt buckle switch status signal
      Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Shift position P signal ECM
      Shift position R signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Seat belt warning (for rear seat) buzzer*1 Sounds intermittently Input CAN Shift position P signal ECM
      Shift position R signal
      Rear right door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Rear left door courtesy switch signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Direct line Rear left seat belt buckle switch signal
      • Rear seat inner with center belt assembly LH*2
      • Rear No. 1 seat inner belt assembly LH*3
      Rear center seat belt buckle switch signal
      Rear right seat belt buckle switch signal Rear No. 1 seat inner belt assembly RH
      Vehicle roll-away notification (STEP 1) buzzer Sounds continuously Input CAN Engine RPM data signal ECM
      Shift position P signal
      Shift position N signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Vehicle roll-away notification (STEP 2) buzzer Sounds continuously Input CAN Engine RPM data signal ECM
      Shift position P signal
      Shift position N signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Brake fluid low warning buzzer Sounds intermittently Input CAN Vehicle speed (SP1)signal Brake actuator assembly (Skid control ECU)
      Direct Line Brake fluid level warning switch signal Brake master cylinder reservoir assembly (Brake fluid level warning switch)
      Engine oil pressure warning buzzer Sounds intermittently Input CAN Demand of engine oil pressure light signal*1 ECM
      Engine RPM data signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Direct line Engine oil pressure signal*1 Engine oil pressure switch assembly
      EPS warning buzzer Sounds once Input CAN Demand buzzer to meter signal Power steering ECU assembly
      Engine coolant temperature warning buzzer Sounds once Input CAN Engine coolant temperature signal ECM
      Smart key warning buzzer Sounds intermittently Input CAN Meter buzzer intermittent request signal Certification ECU (Smart key ECU assembly)
      Sounds intermittently (Maximum 9 times) Input CAN Meter buzzer intermittent request (0.7 sec. cycle) signal
      Sounds continuously Input CAN Meter buzzer continuation request signal
      Sounds once Input CAN Meter buzzer single-shot request signal
      Multi-information display warning buzzer Sounds once Input CAN Multi-information display warning signal Related ECUs
      Direct line
      Radar cruise control low speed cancel buzzer Sounds twice Input CAN Low speed cancel buzzer request signal Driving support ECU assembly
      Immobiliser key identification completion buzzer Sounds once Input CAN Immobiliser key identification completion signal Certification ECU (Smart key ECU assembly)
      Driving with parking brake unreleased warning buzzer Sounds intermittently Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU)
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Driving with door ajar warning buzzer Sounds intermittently Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU)
      Front passenger door courtesy switch signal
      Rear right door courtesy switch signal
      Rear left door courtesy switch signal
      Luggage courtesy switch signal
      Hood courtesy switch signal
      Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU)
      Sports shift reject buzzer Sounds twice Input CAN Reject buzzer signal ECM
      Light reminder buzzer Sounds continuously Input CAN Lighting system state signal Main body ECU (Multiplex network body ECU)
      Driver door courtesy switch signal
      Turn signal flasher buzzer Sounds intermittently Input Direct line LH turn signal switch signal Windshield wiper switch assembly
      RH turn signal switch signal
      Hazard warning switch signal Air conditioning control assembly
      Lane departure alert cancel buzzer Sounds twice Input CAN Lane departure alert cancel buzzer signal Forward recognition camera
      Lane departure alert warning buzzer Sounds intermittently Input CAN LDW buzzer signal Forward recognition camera
      Door open when shift lever not in P warning buzzer Sounds intermittently Input CAN Meter buzzer continuation request signal Certification ECU (Smart key ECU assembly)
      Unsteady driving alert buzzer Sounds twice Input CAN SWS buzzer request signal Forward recognition camera
      1. *1: for 2GR-FSE
      2. *2: for Fixed Seat Type
      3. *3: for Fold Down Seat Type
      4. *4: for 8AR-FTS
    5. Others
      Item Condition Input/Output Communication Line Signal Component
      Meter illumination Illumination level Input CAN Illuminance data signal Main body ECU (Multiplex network body ECU)
      Auto dimmer signal
      Taillight request signal
      Parked condition signal
      Panel lighting request signal
      Direct line Illumination level signal Trip switch
      - Output CAN Rheostat duty signal Related ECUs
      Lounge illumination off signal
      Tail cancel signal
      Direct line Illumination level output signal
  3. MULTI-INFORMATION DISPLAY FLOW CHART
    1. Multi-information display (except F SPORT models) flow chart

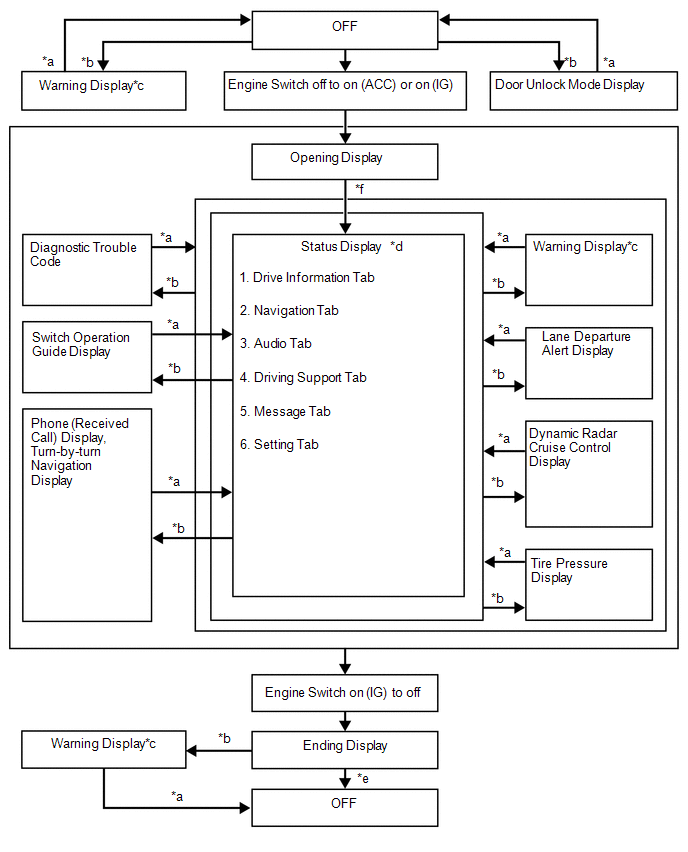

      Fig 3: Multi-Information Display Flow Chart
      GTY621942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Conditions are not met *b Conditions are met
      *c If there are multiple display requests, items will be displayed in sequence *d Item or display is selected by operating the steering pad switch
      *e ODO display is displayed for a certain period of time after the engine switch is turned off *f After engine switch is turned on (IG)
    2. Multi-information display (for F SPORT models) flow chart

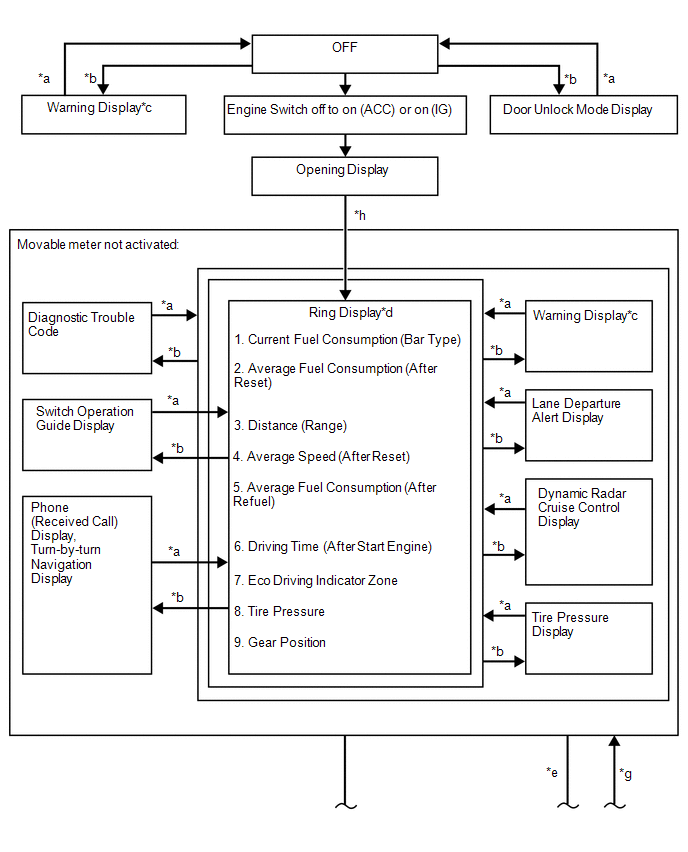

      Fig 4: Multi-information display (for F SPORT models) flow chart (1 of 2)
      GTY630276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

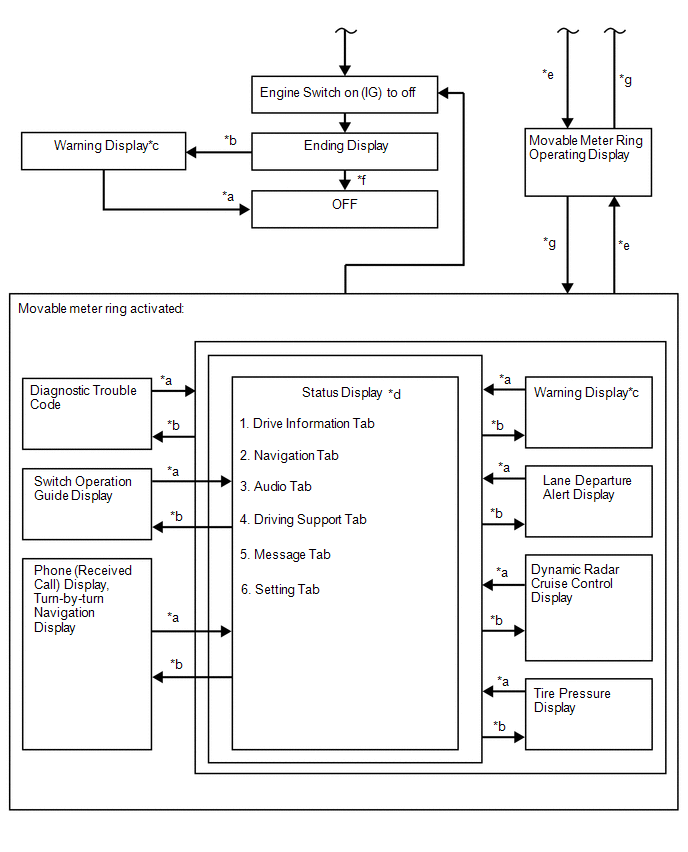

      Fig 5: Multi-information display (for F SPORT models) flow chart (2 of 2)
      GTY631146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Conditions are not met *b Conditions are met
      *c If there are multiple display requests, items will be displayed in sequence *d Item or display is selected by operating the steering pad switch
      *e Operating the TOP switch *f ODO display is displayed for a certain period of time after the engine switch is turned off
      *g Movable meter ring activated *h After engine switch is turned on (IG)
  4. DESCRIPTION OF WARNING DISPLAYS
    Priority System name/(Vehicle Function) Master Warning Light
    ◦: Comes on
    •: Blinks    		 Buzzer (*1) Display Level
    1 Four wheel drive control system - - AWD Test Mode Caution
    (Chassis dynamometer mode) - - CDY-2 Caution
    - - CDY-4 Caution
    Lane departure alert system (w/ Steering Control) - - ADJUSTING FORWARD CAMERA Caution
    Dynamic radar cruise control system - - ADJUSTING FRONT RADAR BEAM Caution
    Pre-collision system - - ERROR ADJUSTING FRONT RADAR BEAM Caution
    - - ADJUSTING FRONT RADAR BEAM VERTICAL Caution
    - - ADJUSTING FRONT RADAR BEAM HORIZONTAL Caution
    - - CHECKING PRE-CRASH BRAKE Caution
    Lighting system - - Headlight System Uninitialized Visit Your Dealer Advisory
    Pre-collision system - - BRAKE! Warning
    Smart access system with push-button start • * Push and Hold Engine Switch for Emergency Stop Warning
    • * Shift to N and Press Engine Switch to Restart Caution
    • * Engine Stopped Shift to P Caution
    (Vehicle roll-away warning) • * Engine Stopped Stop in a Safe Place Caution
    2 Dynamic radar cruise control system or Lane departure alert system (w/ Steering Control) - - Dynamic radar cruise control or Lane departure alert warning reminder indicator Warning
    Vehicle stability control system • ◦ Braking Power Low Stop in a Safe Place See Owner's Service Information Warning
    Brake override system • ◦ Accelerator Stuck Depress Brake to Stop Caution
    3 (Each door warning (vehicle being driven)) • * Each door ajar (vehicle being driven) Caution
    (Each door warning (vehicle being stopped, engine switch on (IG))) - - Each door ajar (vehicle stopped, engine switch on (IG)) Caution
    Intuitive parking assist system - - Clearance sonar detection (image display) Caution
    ◦ - Parking Assist Malfunction Caution
    ◦ - Clean Parking Assist Sensor Caution
    4 Smart access system with push-button start - - Power Turned Off to Save Battery Caution
    5 Smart access system with push-button start • * Shift to P Before Exiting Vehicle Caution
    Power steering system ◦ * Power Steering Malfunction Steering Power Low Visit Your Dealer Caution
    ◦ * Steering Power Low Visit Your Dealer Caution
    ◦ * Power Steering Malfunction Visit Your Dealer Caution
    (Parking brake) • * Release Parking Brake Caution
    Smart access system with push-button start - * Key Not Detected Check Key Location Caution
    Drive start control system • ◦ Release Accelerator Caution
    6 Automatic transmission system ◦ * Slippery Road Cannot Shift to Lower Gear Caution
    Lane departure alert system (w/ Steering Control) ◦ * Lane Departure Alert Driver Attention Required Caution
    -/◦ -/* LDA Hold Steering Wheel Caution
    ◦ - LDA Steering Assist Unavailable Hold Steering Wheel Caution
    7 SFI system ◦ ◦ Check Engine Visit Your Dealer Caution
    ◦ ◦ Check Engine Reduced Engine Power Visit Your Dealer Caution
    ◦ ◦ Reduced Engine Power Visit Your Dealer Caution
    Airbag system ◦ ◦ SRS Airbag System Malfunction Visit Your Dealer Caution
    Vehicle stability control system - ◦ Antilock Brake System Malfunction Visit Your Dealer Caution
    SFI system ◦ - Engine Coolant Temp High Stop in a Safe Place See Owner's Service Information Caution
    Dynamic radar cruise control system ◦ ◦ Radar Cruise Control Unavailable Clean Sensor Caution
    ◦ ◦ Radar Cruise Control Unavailable Caution
    Smart access system with push-button start ◦ * Access System with Elec. Key Malfunction See Owner's Service Information Caution
    Blind spot monitor system ◦ ◦ Blind Spot Monitor Unavailable Caution
    Dynamic radar cruise control system ◦ ◦ Cruise Control Malfunction Visit Your Dealer Caution
    Lane departure alert system (w/ Steering Control) ◦ ◦ Lane Departure Alert Malfunction Visit Your Dealer Caution
    Pre-collision system - - Forward Camera System Unavailable Caution
    Lane departure alert system (w/ Steering Control) ◦ ◦ Lane Departure Alert Unavailable Caution
    - - Lane Departure Alert Turned On Steering Assist Active Caution
    - - Lane Departure Alert Turned On Steering Assist Inactive Caution
    Pre-collision system - - Forward Camera System Unavailable Clean Windshield Caution
    ◦ ◦ Pre-Collision System Malfunction Visit Your Dealer Caution
    Blind spot monitor system ◦ ◦ Blind Spot Monitor System Malfunction Visit Your Dealer Caution
    (Engine oil pressure switch assembly) ◦ * Oil Pressure Low Stop in a Safe Place See Owner's Service Information Caution
    Automatic transmission system ◦ ◦ Transmission Fluid Temp High See Owner's Service Information Caution
    Four wheel drive control system ◦ ◦ AWD System Malfunction 2WD Mode Engaged Visit Your Dealer Caution
    Lane departure alert system (w/ Steering Control) - - Lane Departure Alert Unavailable Below Approx 50km/h Advisory
    - - Lane Departure Alert Unavailable Below Approx 32MPH Advisory
    - - Lane Departure Alert Unavailable at Current Speed Advisory
    8 Dynamic radar cruise control system or Lane departure alert system (w/ Steering Control) - - Dynamic radar cruise control or Lane departure alert indicator -
    Power steering system ◦ * Engine Stopped Steering Power Low Caution
    Smart access system with push-button start - - Turn Off Vehicle Caution
    Lane departure alert system (w/ Steering Control) - * Would You Like to Take a Rest? Advisory
    - * Please Take a Rest Advisory
    Smart access system with push-button start - - Key Left inside Vehicle Caution
    Lighting system • * Turn Lights Off Caution
    Sliding roof system • ◦ Moon Roof Open Caution
    Power window control system • ◦ Window Open Caution
    Power window control system or Sliding roof system • ◦ Window / Moon Roof Open Caution
    Smart access system with push-button start • * Depress Brake and Then Touch Key to Engine Switch Caution
    - -/* Depress Brake and Then Start Engine Caution
    9 Steering lock system • * Steering Wheel Lock Press Engine Switch while Turning Wheel Caution
    Drive start control system ◦ ◦ Drive-Start Control Malfunction Visit Your Dealer Caution
    Brake override system ◦ ◦ Brake Override Malfunction Visit Your Dealer Caution
    10 Smart access system with push-button start - * Key Battery Low Caution
    (Engine oil level sensor) - - Engine Oil Level Low Add or Replace Caution
    Lighting system, Automatic headlight beam level control system, Automatic high beam system or AFS (Adaptive front-lighting system) ◦ ◦ Headlight System Malfunction Visit Your Dealer Caution
    Brake override system • - Accelerator and Brake Pedals Depressed Simultaneously Advisory
    Tire pressure warning system - - Tire pressure indicator Advisory
    11 (Level warning switch assembly) - - Windshield Washer Fluid Low Advisory
    (Fuel sender gauge assembly)
    (No. 2 fuel sender gauge assembly)    		 - - Fuel Low Advisory
    (Ice warning) - ◦ Roads May Be Icy Drive with Care Caution
    Vehicle stability control system - - Traction Control Turned Off Caution
    (Oil maintenance) - - Oil Maintenance Required Soon Advisory
    (Scheduled maintenance) - - Maintenance required soon Advisory
    (Oil maintenance) - - Oil Maintenance Required Visit Your Dealer Advisory
    (Scheduled maintenance) - - Maintenance required Advisory
    Automatic high beam system - - To Activate Auto High Beam, Switch Headlights to High Beam Advisory
    Smart access system with push-button start - - Depress Brake and Then Start Engine Caution
    Pre-collision system - - VSC Turned Off Pre-Collision Brake System Unavailable Advisory
    - - Pre-Collision System Unavailable Advisory
    Air conditioning system • - High Power Consumption Partial Limit ON AC/Heater Operation Advisory
    Pre-collision system - - Pre-Collision System Unavailable Clean Sensor Advisory
    - - Pre-Collision System Off Advisory
    (Each door warning (vehicle stopped, engine switch off)) - - Each door ajar (vehicle stopped, engine switch off) Caution
    • *: An exclusive buzzer sounds depending on condition
    • *1: Buzzers that are linked with the master warning light
scientia non olet · About LEMON Manuals
