Parts Location [10/2015 - ]: Illustration

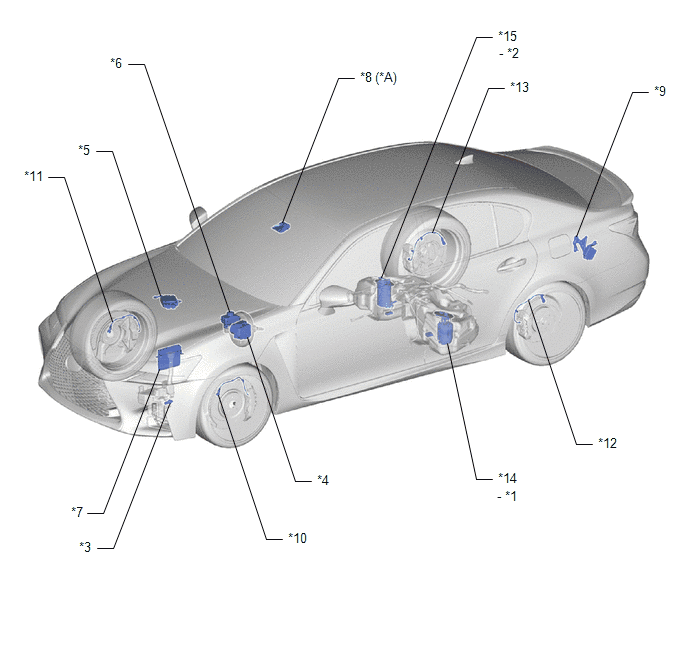

| *A | w/ Pre-collision System | - | - |
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | NO. 2 FUEL SENDER GAUGE ASSEMBLY |
| *3 | LEVEL WARNING SWITCH ASSEMBLY | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *5 | POWER STEERING ECU ASSEMBLY | *6 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
| *7 | ECM | *8 | FORWARD RECOGNITION CAMERA |
| *9 | PARKING BRAKE ECU ASSEMBLY | *10 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY LH |
| *11 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH | *12 | PAD WEAR INDICATOR WIRE ASSEMBLY LH |
| *13 | PAD WEAR INDICATOR WIRE ASSEMBLY RH | *14 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *15 | FUEL TANK VENT TUBE ASSEMBLY | - | - |

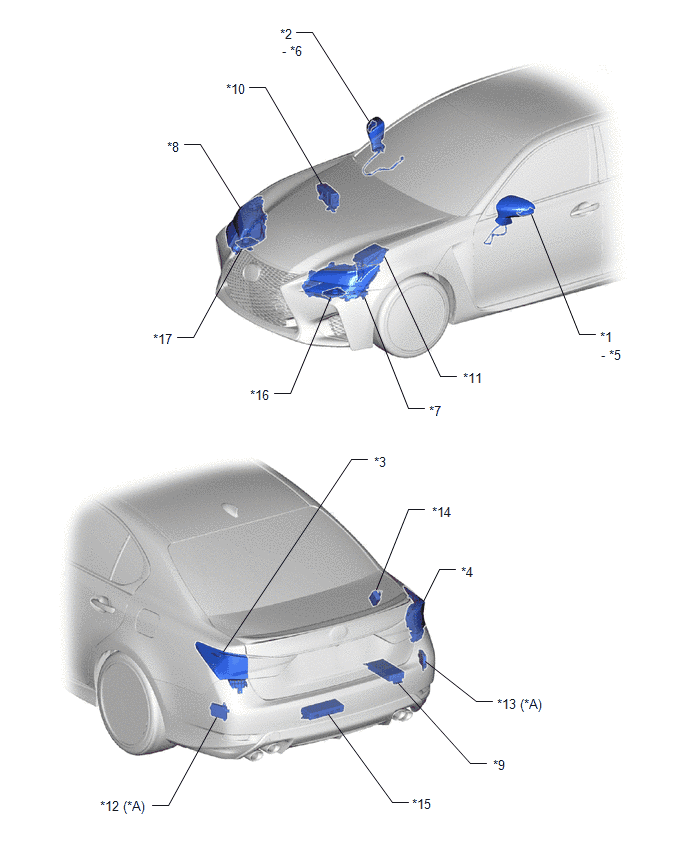

| *A | w/ Blind Spot Monitor System | - | - |
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY RH |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH | *4 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *6 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *7 | HEADLIGHT ASSEMBLY LH | *8 | HEADLIGHT ASSEMBLY RH |
| *9 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *10 | NO. 1 ENGINE ROOM RELAY BLOCK - MPX-B FUSE |
| *11 | NO. 2 ENGINE ROOM RELAY BLOCK - GAUGE FUSE |
*12 | BLIND SPOT MONITOR SENSOR LH |
| *13 | BLIND SPOT MONITOR SENSOR RH | *14 | TIRE PRESSURE MONITOR RECEIVER ASSEMBLY |
| *15 | TORQUE VECTORING DIFFERENTIAL ECU ASSEMBLY | *16 | HEADLIGHT ECU SUB-ASSEMBLY LH |
| *17 | HEADLIGHT ECU SUB-ASSEMBLY RH | - | - |

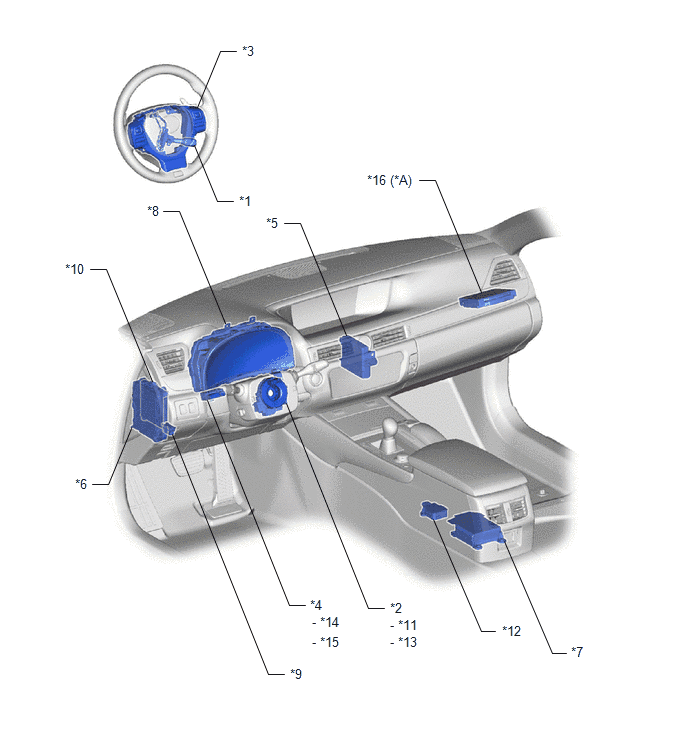

| *A | w/ Telematics Transceiver | - | - |
| *1 | CRUISE CONTROL MAIN SWITCH | *2 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | TRIP SWITCH |
| *5 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *6 | COWL SIDE JUNCTION BLOCK LH - HAZ FUSE |
| *7 | AIRBAG SENSOR ASSEMBLY | *8 | COMBINATION METER ASSEMBLY |
| *9 | DLC3 | *10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | STEERING SENSOR | *12 | YAW RATE SENSOR |
| *13 | SPIRAL CABLE | *14 | ODO/TRIP SWITCH |
| *15 | LIGHT CONTROL RHEOSTAT SWITCH | *16 | DCM (TELEMATICS TRANSCEIVER) |

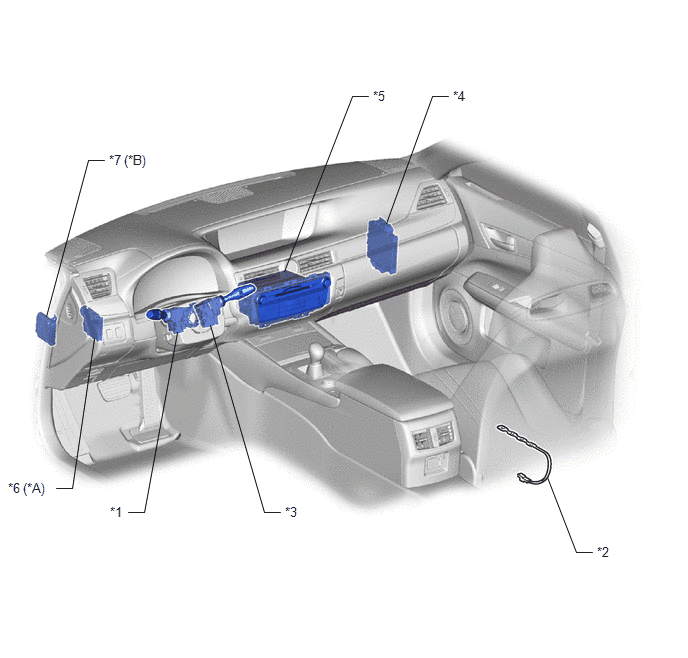

| *A | w/ Pre-collision System | *B | w/ Intuitive Parking Assist System |
| *1 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *2 | OCCUPANT DETECTION SENSOR (FRONT SEAT CUSHION WITH COVER PAD RH) |
| *3 | WINDSHIELD WIPER SWITCH ASSEMBLY | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | RADIO RECEIVER ASSEMBLY - HAZARD WARNING SIGNAL SWITCH |
*6 | DRIVING SUPPORT ECU ASSEMBLY |
| *7 | CLEARANCE WARNING ECU ASSEMBLY | - | - |
