Vehicle Speed Signal Circuit [09/2014 - 10/2015]: Wiring Diagram

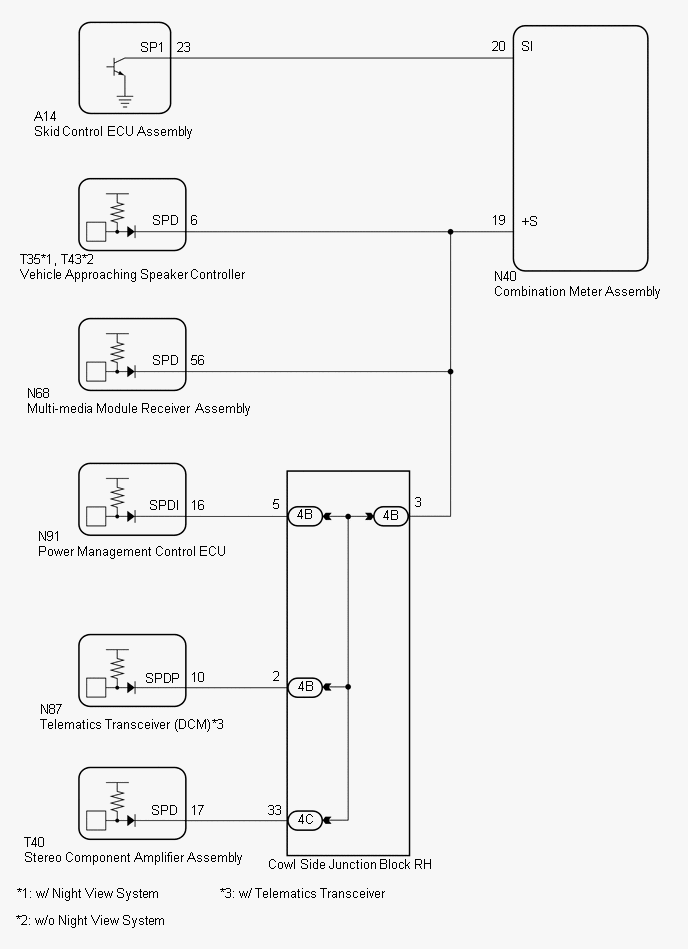

Fig 1: Vehicle Speed Signal Circuit Wiring Diagram

GTY533897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
