Headup Display Malfunction [09/2014 - 10/2015]: Wiring Diagram

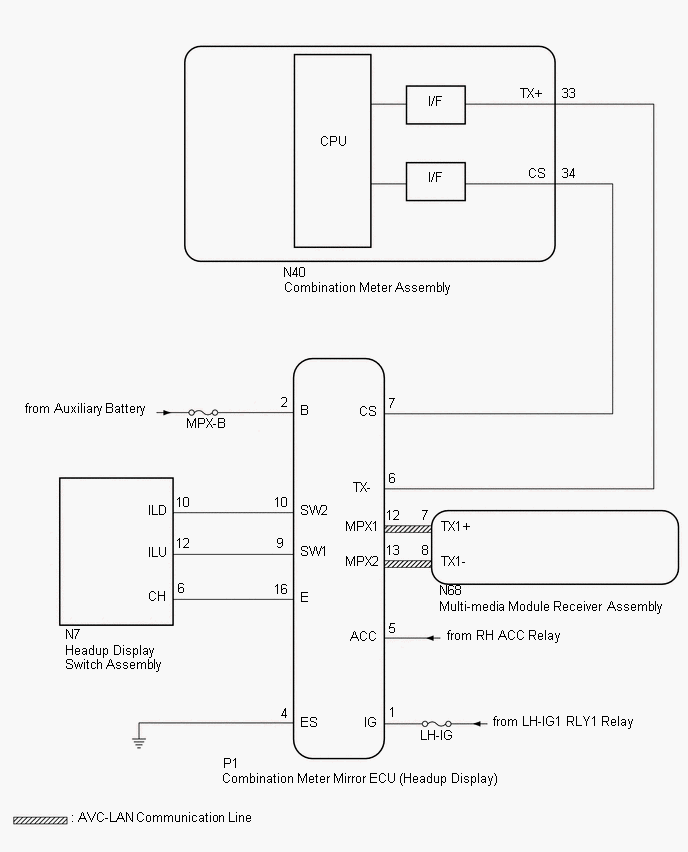

Fig 1: Headup Display Wiring Diagram

GTY519382

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
