DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [10/2015 - ]: Wiring Diagram

  1. LH Side:

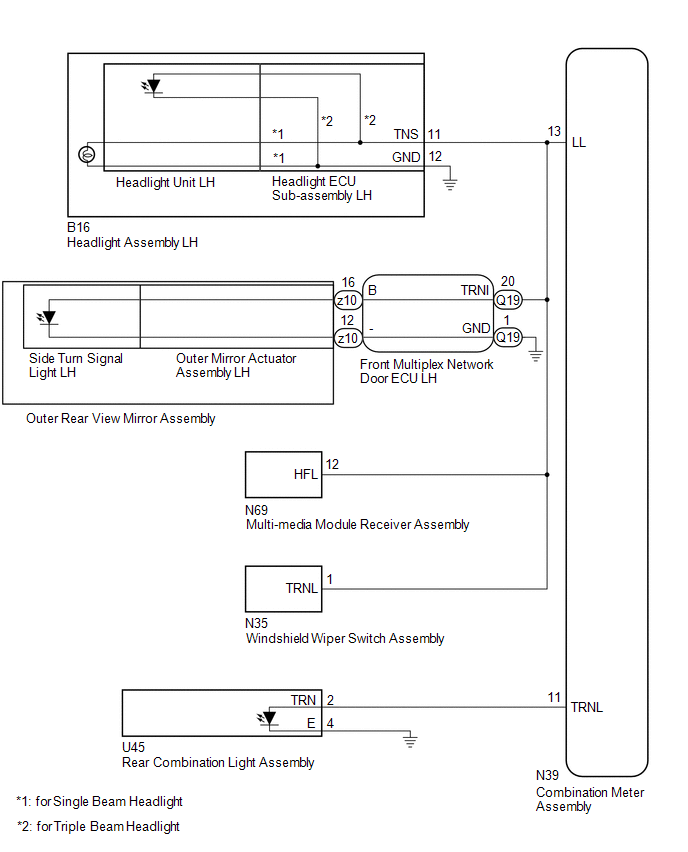

    Fig 1: Turn Signal / Hazard Flasher Circuit Wiring Diagram (1 Of 2)
    GTY530238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. RH Side:

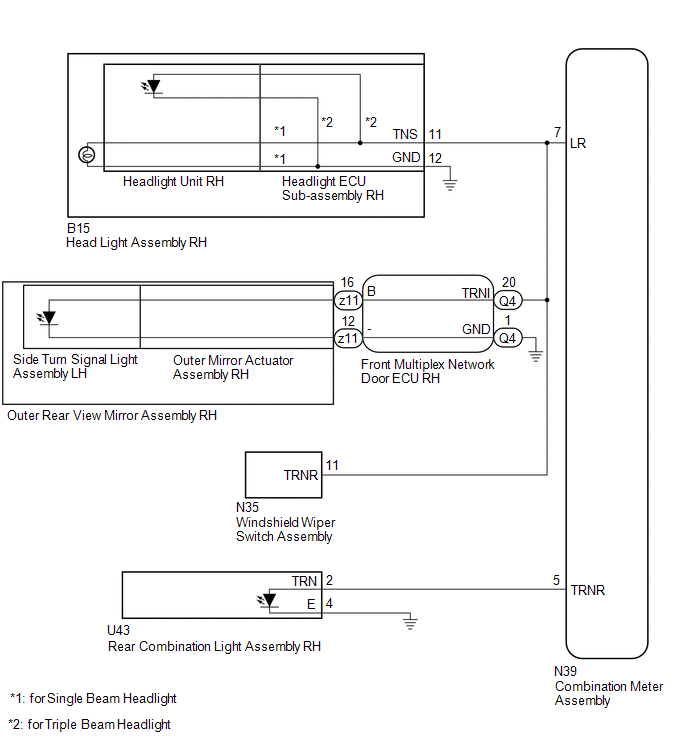

    Fig 2: Turn Signal / Hazard Flasher Circuit Wiring Diagram (2 Of 2)
    GTY523527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
