DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [10/2015 - ]: Procedure

  1. CHECK FOR DTC
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [09/2014 - ]

    2. Check for DTCs.

      Refer to DTC CHECK / CLEAR [09/2014 - ]

      OK

      DTC B1507 or B1508 output does not occur.

      Result

      Result
      OK
      NG

    Result:  1

    OK

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [10/2015 - ]

    Result:  2

    NG

    See step  2

  2. INSPECT LIGHTS
    1. Inspect the illumination of each turn signal light.

      Result

      Result Proceed to
      LH side front or side turn signal light does not illuminate. A
      RH side front or side turn signal light does not illuminate. B
      LH side rear turn signal light does not illuminate. C
      RH side rear turn signal light does not illuminate. D

    Result:  2

    B

    See step  9

    Result:  3

    C

    See step  15

    Result:  4

    D

    See step  17

    Result:  1

    A

    See step  3

  3. CHECK HARNESS AND CONNECTOR (LH Turn Signal Circuit)
    1. Disconnect the N39 combination meter assembly connector.
    2. Disconnect the B16 headlight assembly LH assembly connector.
    3. Disconnect the z10 front multiplex network door ECU LH connector.
    4. Disconnect the N69 multimedia module receiver assembly connector.
    5. Disconnect the N35 windshield wiper switch assembly connector.
    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N39-13 (LL) - B16-11 (TNS) Always Below 1 Ω
      N39-13 (LL) - z10-16 (B)
      N39-13 (LL) - N69-12 (HFL)
      N39-13 (LL) - N35-1 (TRNL)
      B16-12 (GND) - Body ground
      z10-12 (-) - Body ground
      N39-13 (LL) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    See step  7

    Result:  1

    OK

    See step  4

  4. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
    1. Remove the outer rear view mirror assembly LH.

      Refer to REMOVAL [09/2014 - ]

    2. Inspect the outer rear view mirror assembly LH.

      Refer to INSPECTION [09/2014 - ]

      Result

      Result
      OK
      NG

    Result:  2

    NG

    See step  8

    Result:  1

    OK

    See step  5

  5. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH
    1. Remove the headlight ECU sub-assembly LH.

      Refer to REMOVAL [10/2015 - ]

    2. Measure the resistance according to the value(s) in the table below.

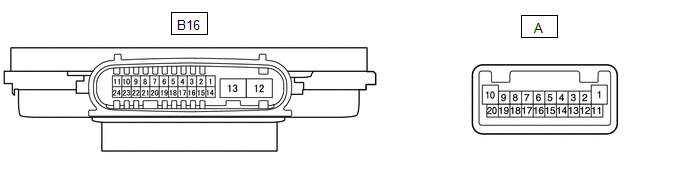

      GTY537467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      B16-11(TNS) - A-9(TURN+) Always Below 1 Ω
      B16-12(GND) - A-13(TURN-)
      B16-11(TNS) - B16-12(GND) Always 10 kΩ or higher

      Result

      Result
      OK
      NG

    Result:  3

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [10/2015 - ]

    Result:  2

    OK

    See step  6

  6. CHECK HEADLIGHT UNIT LH
    1. Replace the headlight unit LH.
    2. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [09/2014 - ]

    3. Recheck for DTCs and check that no DTCs are output.

      Refer to DTC CHECK / CLEAR [09/2014 - ]

      Result

      Result
      OK
      NG

    Result:  1

    OK

    END (HEADLIGHT UNIT LH IS DEFECTIVE)

    Result:  2

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

  7. INSPECT FRONT MULTIPLEX NETWORK DOOR ECU LH
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q19-20(TRNL) - z10-16(B) Always Below 1 Ω
      Q19-1(GND) - z10-12(-)
      Q19-20(TRNL) - Q19-1(GND) Always 10 kΩ or higher
      Q19-20(TRNL) - Body ground

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPAIR OR REPLACE HARNESS AND CONNECTOR

    Result:  2

    NG

    REPLACE FRONT MULTIPLEX NETWORK DOOR ECU LH. Refer to  DISASSEMBLY [09/2014 - ]

  8. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH
    1. Remove the side turn signal light assembly LH.

      Refer to REMOVAL [09/2014 - ]

    2. Inspect the side turn signal light assembly LH.

      Refer to INSPECTION [09/2014 - ]

      Result

      Result
      OK
      NG

    Result:  1

    OK

    REPLACE OUTER MIRROR ACTUATOR ASSEMBLY LH. Refer to  REMOVAL [09/2014 - ]

    Result:  2

    NG

    REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY LH. Refer to  REMOVAL [09/2014 - ]

  9. CHECK HARNESS AND CONNECTOR (RH Turn Signal Circuit)
    1. Disconnect the N39 combination meter assembly connector.
    2. Disconnect the B15 headlight assembly RH assembly connector.
    3. Disconnect the z11 front multiplex network door ECU RH connector.
    4. Disconnect the N35 windshield wiper switch assembly connector.
    5. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N39-7 (LR) - B16-11 (TNS) Always Below 1 Ω
      N39-7 (LR) - z11-16 (B)
      N39-7 (LR) - N35-1 (TRNR)
      B15-12 (GND) - Body ground
      z11-12 (-) - Body ground
      N39-7 (LR) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    See step  13

    Result:  1

    OK

    See step  10

  10. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
    1. Remove the outer rear view mirror assembly RH.

      Refer to REMOVAL [09/2014 - ]

    2. Inspect the outer rear view mirror assembly RH.

      Refer to INSPECTION [09/2014 - ]

      Result

      Result
      OK
      NG

    Result:  2

    NG

    See step  14

    Result:  1

    OK

    See step  11

  11. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH
    1. Remove the headlight ECU sub-assembly RH.

      Refer to REMOVAL [10/2015 - ]

    2. Measure the resistance according to the value(s) in the table below.
      GTY531018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      B15-11(TNS) - A-9(TURN+) Always Below 1 Ω
      B15-12(GND) - A-13(TURN-)
      B15-11(TNS) - B15-12(GND) Always 10 kΩ or higher

      Result

      Result
      OK
      NG

    Result:  3

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [10/2015 - ]

    Result:  2

    OK

    See step  12

  12. CHECK HEADLIGHT UNIT RH
    1. Replace the headlight unit RH.
    2. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [09/2014 - ]

    3. Recheck for DTCs and check that no DTCs are output.

      Refer to DTC CHECK / CLEAR [09/2014 - ]

      Result

      Result
      OK
      NG

    Result:  1

    OK

    END (HEADLIGHT UNIT RH IS DEFECTIVE)

    Result:  2

    NG

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

  13. INSPECT FRONT MULTIPLEX NETWORK DOOR ECU RH
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q4-20(TRNL) - z11-16(B) Always Below 1 Ω
      Q4-1(GND) - z11-12(-)
      Q4-20(TRNL) - Q4-1(GND) Always 10 kΩ or higher
      Q4-20(TRNL) - Body ground

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPAIR OR REPLACE HARNESS AND CONNECTOR

    Result:  2

    NG

    REPLACE FRONT MULTIPLEX NETWORK DOOR ECU RH. Refer to  DISASSEMBLY [09/2014 - ]

  14. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY RH
    1. Remove the side turn signal light assembly RH.

      Refer to REMOVAL [09/2014 - ]

    2. Inspect the side turn signal light assembly RH.

      Refer to INSPECTION [09/2014 - ]

      Result

      Result
      OK
      NG

    Result:  1

    OK

    REPLACE OUTER MIRROR ACTUATOR ASSEMBLY RH. Refer to  REMOVAL [09/2014 - ]

    Result:  2

    NG

    REPLACE SIDE TURN SIGNAL LIGHT ASSEMBLY RH. Refer to  REMOVAL [09/2014 - ]

  15. CHECK HARNESS AND CONNECTOR (LH Turn Signal Circuit)
    1. Disconnect the N39 combination meter assembly connector.
    2. Disconnect the U45 rear combination light assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N39-11 (TRNL) - U45-2 (TRN) Always Below 1 Ω
      U45-4 (E) - Body ground
      N39-11 (TRNL) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS AND CONNECTOR

    Result:  1

    OK

    See step  16

  16. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH
    1. Remove the rear combination light assembly LH.

      Refer to REMOVAL [10/2015 - ]

    2. Inspect the rear combination light assembly LH.

      Refer to INSPECTION [10/2015 - ]

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

    Result:  2

    NG

    REPLACE REAR COMBINATION LIGHT ASSEMBLY LH. Refer to  REMOVAL [10/2015 - ]

  17. CHECK HARNESS AND CONNECTOR (RH Turn Signal Circuit)
    1. Disconnect the N39 combination meter assembly connector.
    2. Disconnect the U43 rear combination light assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N39-5 (TRNR) - U43-2 (TRN) Always Below 1 Ω
      U43-4 (E) - Body ground
      N39-5 (TRNR) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:  2

    NG

    REPAIR OR REPLACE HARNESS AND CONNECTOR

    Result:  1

    OK

    See step  18

  18. INSPECT REAR COMBINATION LIGHT ASSEMBLY RH
    1. Remove the rear combination light assembly RH.

      Refer to REMOVAL [10/2015 - ]

    2. Inspect the rear combination light assembly RH.

      Refer to INSPECTION [10/2015 - ]

      Result

      Proceed to
      OK
      NG

    Result:  1

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

    Result:  2

    NG

    REPLACE REAR COMBINATION LIGHT ASSEMBLY RH. Refer to  REMOVAL [10/2015 - ]
