DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [09/2014 - 10/2015]: Wiring Diagram

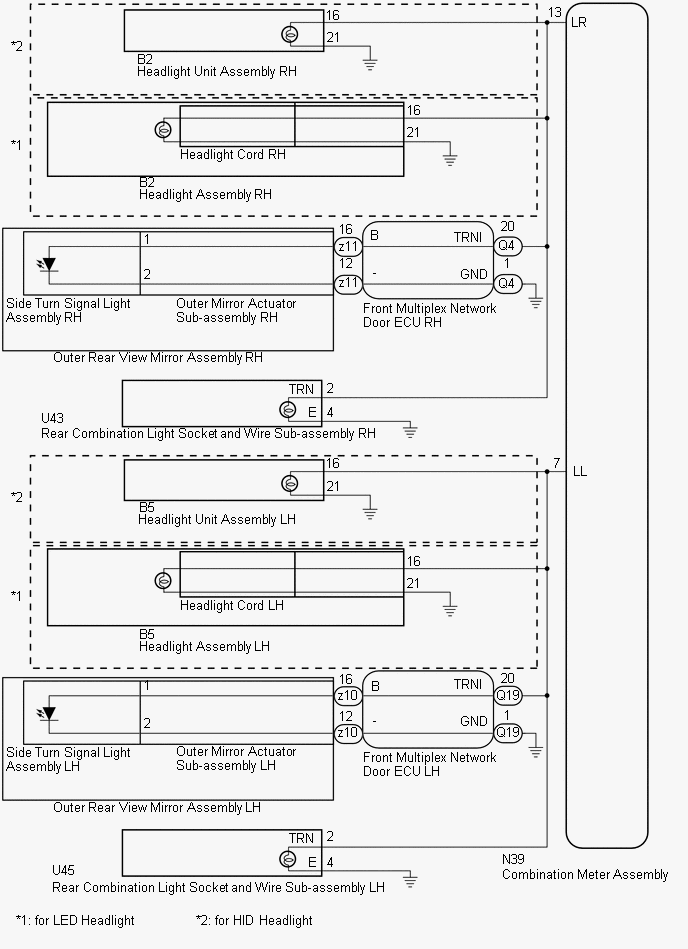

Fig 1: Turn Signal / Hazard Flasher Circuit Wiring Diagram
GTY526210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
