Parts Location [10/2015 - ]: Illustration
| *A | w/ Headup Display | - | - |

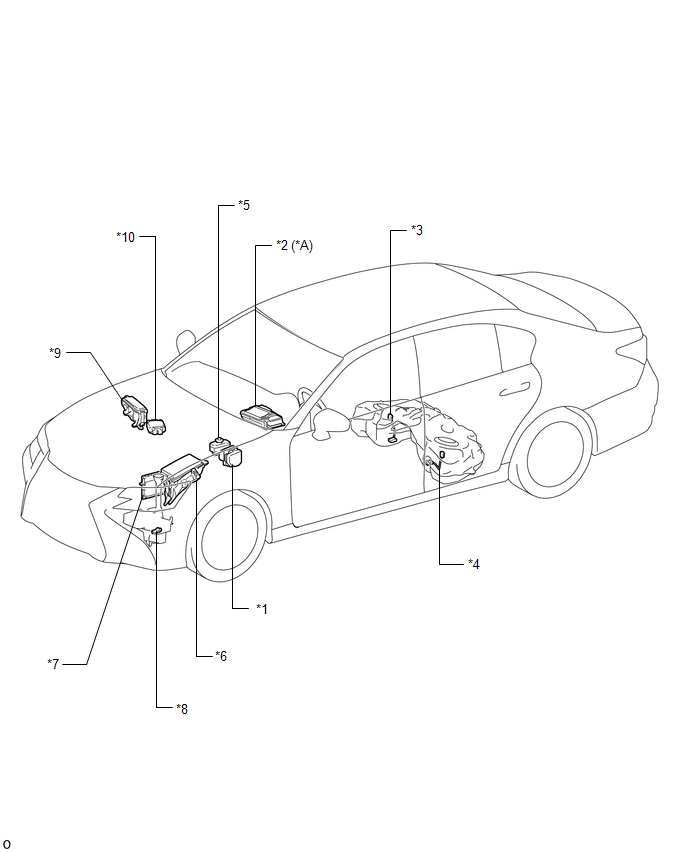

| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY (BRAKE FLUID LEVEL WARNINIG SWITCH) | *2 | COMBINATION METER MIRROR ECU |
| *3 | NO. 2 FUEL SENDER GAUGE ASSEMBLY | *4 | FUEL SENDER GAUGE ASSEMBLY |
| *5 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) | *6 | NO. 2 ENGINE ROOM RELAY BLOCK - IG2 RELAY - GAUGE FUSE |
| *7 | ECM | *8 | LEVEL WARNING SWITCH ASSEMBLY |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK - MPX-B FUSE |
*10 | POWER STEERING ECU ASSEMBLY |

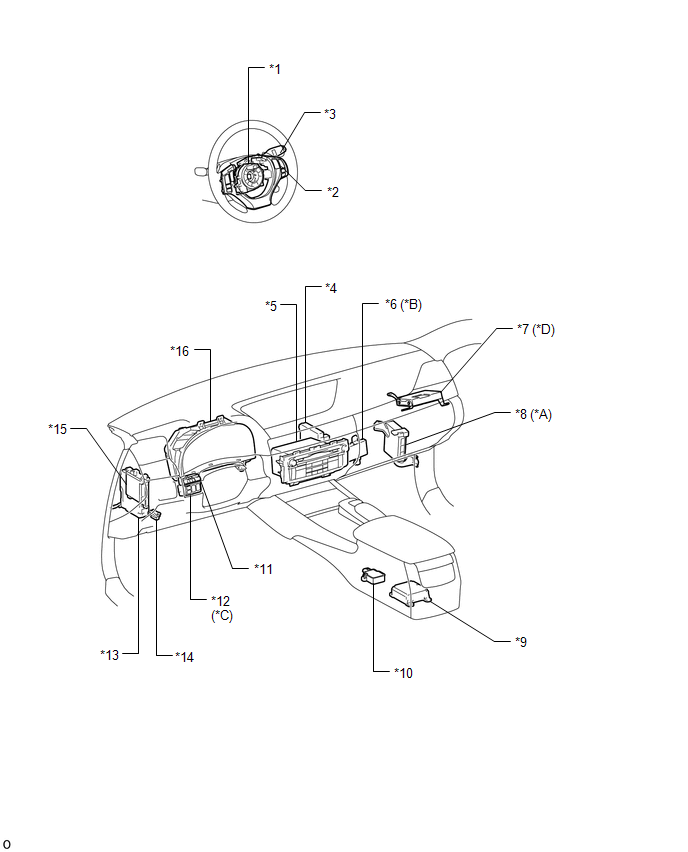

| *A | w/ Adaptive Variable Suspension System | *B | w/ Network Gateway ECU |
| *C | w/ Headup Display | *D | w/ Telematics Transceiver |
| *1 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | WINDSHIELD WIPER SWITCH ASSEMBLY | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | MULTI-MEDIA MODULE RECEIVER ASSEMBLY | *6 | NETWORK GATEWAY ECU |
| *7 | TELEMATICS TRANSCEIVER (DCM) | *8 | ABSORBER CONTROL ECU |
| *9 | CENTER AIRBAG SENSOR ASSEMBLY | *10 | YAW RATE SENSOR |
| *11 | TRIP SWITCH | *12 | HEADUP DISPLAY SWITCH ASSEMBLY |
| *13 | COWL SIDE JUNCTION BLOCK LH - HAZ FUSE - LH-IG FUSE |
*14 | DLC3 |
| *15 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *16 | COMBINATION METER ASSEMBLY |

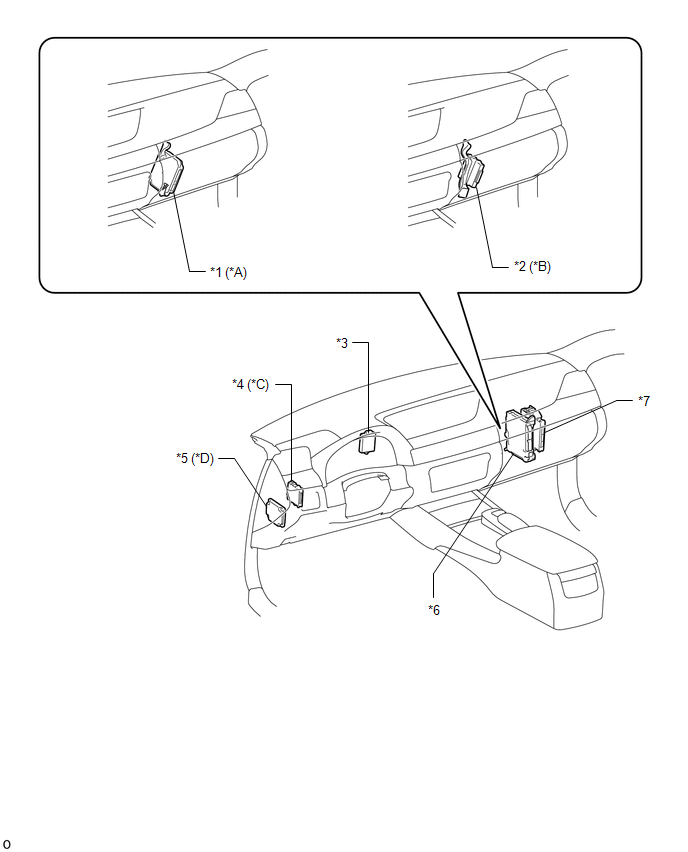

| *A | for Variable Gear Ratio Steering System | *B | for AWD |
| *C | w/ Intuitive Parking Assist System | *D | w/ Dynamic Radar Cruise Control System |
| *1 | FRONT STEERING CONTROL ECU | *2 | 4WD ECU ASSEMBLY |
| *3 | ID CODE BOX (IMMOBILISER CODE ECU) | *4 | CLEARANCE WARNING ECU |
| *5 | DRIVING SUPPORT ECU ASSEMBLY | *6 | COWL SIDE JUNCTION BLOCK RH - RH ACC RELAY |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | - | - |

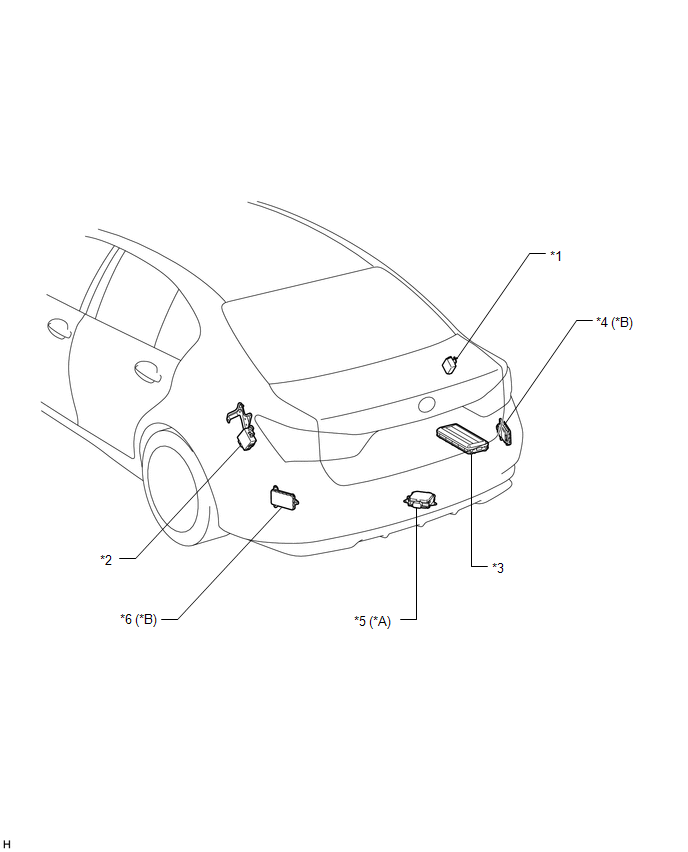

| *A | w/ Variable Gear Ratio Steering System | *B | w/ Blind Spot Monitor System |
| *1 | TIRE PRESSURE WARNING ECU AND RECEIVER | *2 | ELECTRIC PARKING BRAKE ECU |
| *3 | STEREO COMPONENT AMPLIFIER ASSEMBLY | *4 | BLIND SPOT MONITOR SENSOR RH |
| *5 | REAR STEERING CONTROL ECU | *6 | BLIND SPOT MONITOR SENSOR LH |

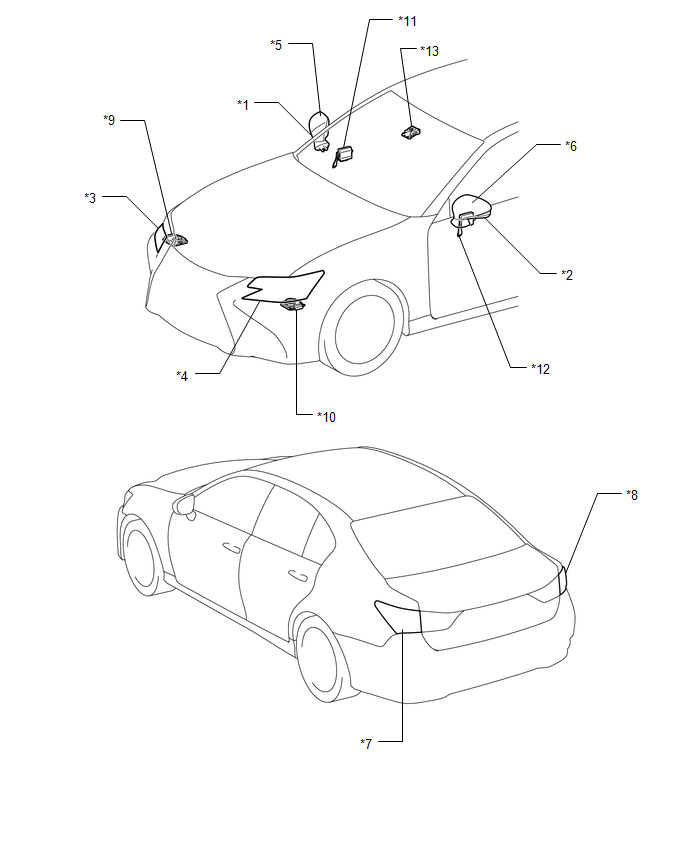

| *1 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *2 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *3 | HEADLIGHT ASSEMBLY RH | *4 | HEADLIGHT ASSEMBLY LH |
| *5 | OUTER MIRROR ACTUATOR SUB-ASSEMBLY RH | *6 | OUTER MIRROR ACTUATOR SUB-ASSEMBLY LH |
| *7 | REAR COMBINATION LIGHT ASSEMBLY RH | *8 | REAR COMBINATION LIGHT ASSEMBLY LH |
| *9 | HEADLIGHT ECU SUB-ASSEMBLY RH | *10 | HEADLIGHT ECU SUB-ASSEMBLY LH |
| *11 | FRONT MULTIPLEX NETWORK DOOR ECU RH | *12 | FRONT MULTIPLEX NETWORK DOOR ECU LH |
| *13 | FORWARD RECOGNITION CAMERA | - | - |
