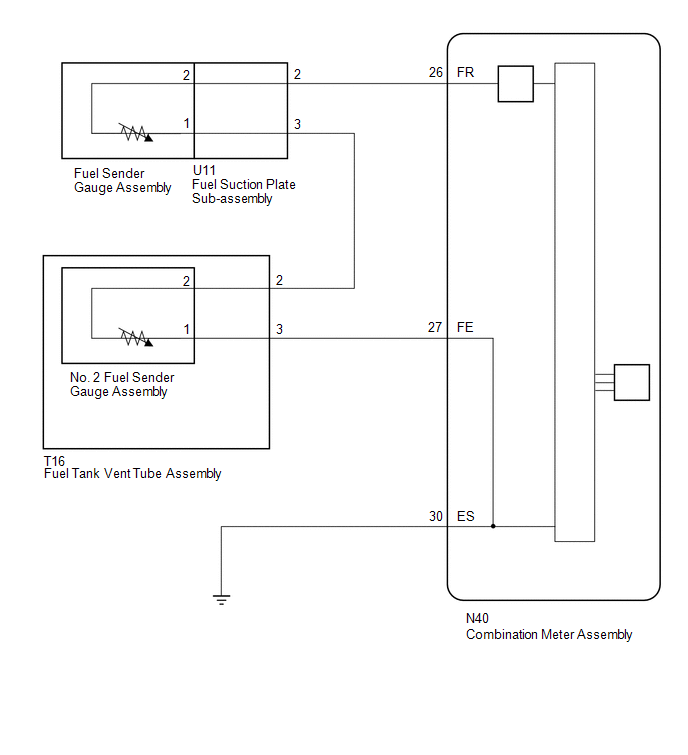

DTC B1500: Fuel Sender Open Detected [09/2014 - 10/2015]: Wiring Diagram

GTY532204

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
