Installation [09/2014 - ]: Procedure

  1. INSTALL COMBINATION METER MIRROR ECU

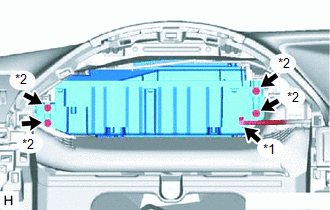

    GTY535073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the combination meter mirror ECU with the 4 screws.
    2. Connect the connector.
      TEXT IN ILLUSTRATION

      *1 Connector
      *2 Screw
  2. INSTALL COMBINATION METER ASSEMBLY

    (Refer to INSTALLATION [09/2014 - ] )
