Disassembly [09/2014 - ]: Procedure

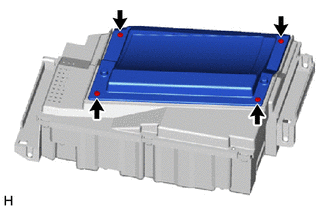

  1. REMOVE COMBINATION METER MIRROR GLASS
    GTY416969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 screws and combination meter mirror glass.
