Components [10/2015 - ]: Illustration

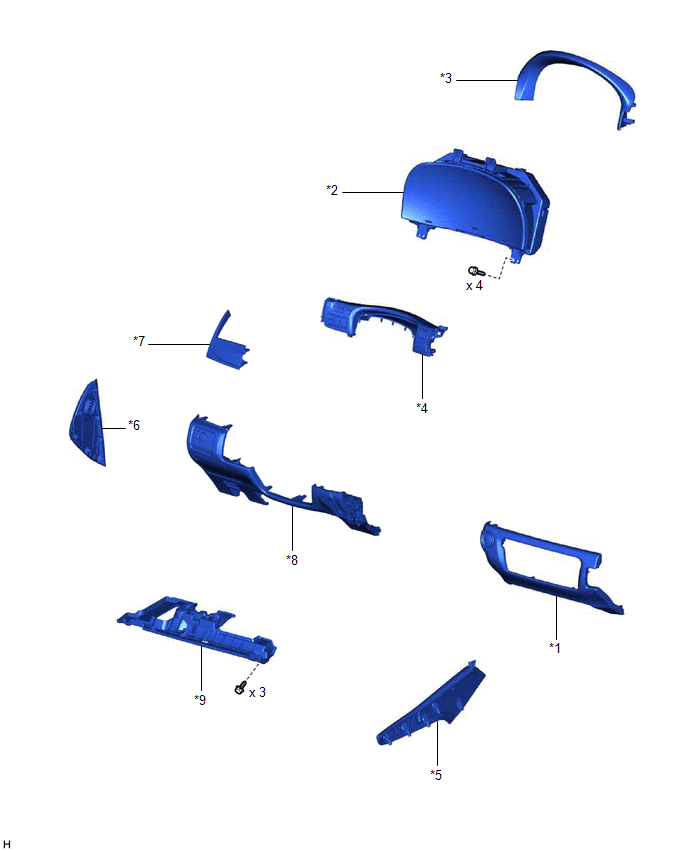

Fig 1: Combination Meter Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER INSTRUMENT CLUSTER FINISH PANEL	*2	COMBINATION METER ASSEMBLY
*3	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	*4	INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
*5	INSTRUMENT PANEL FINISH PANEL END LH	*6	INSTRUMENT SIDE PANEL LH
*7	NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY	*8	NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*9	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-

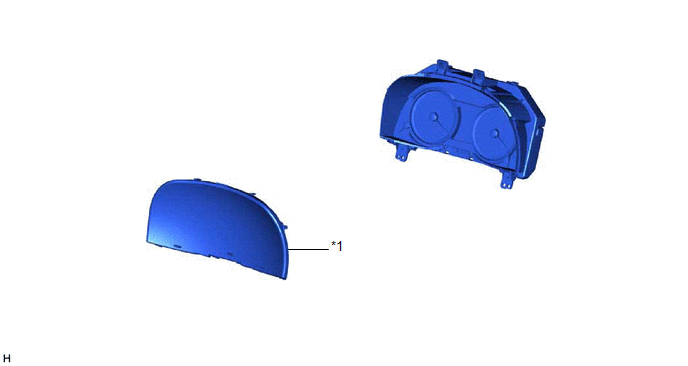

Fig 1: Combination Meter Replacement Components (2 Of 2)

COMBINATION METER GLASS
