Inspection [10/2015 - ]: Procedure
- INSPECT CLOCK ASSEMBLY
- Check the illumination.
- Apply battery voltage to the connector and check the illumination condition.
OK
Measurement Condition Specified Condition Battery positive (+) → Terminal 3 (ILL+)
Battery negative (-) → Terminal 8 (ILL-)Illuminates If the result is not as specified, replace the clock assembly.

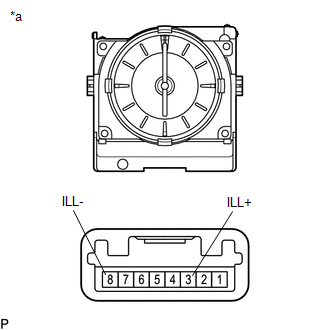

*a Component without harness connected
(Clock Assembly)
- Apply battery voltage to the connector and check the illumination condition.
- Check the illumination.
