Components [10/2015 - ]: Illustration

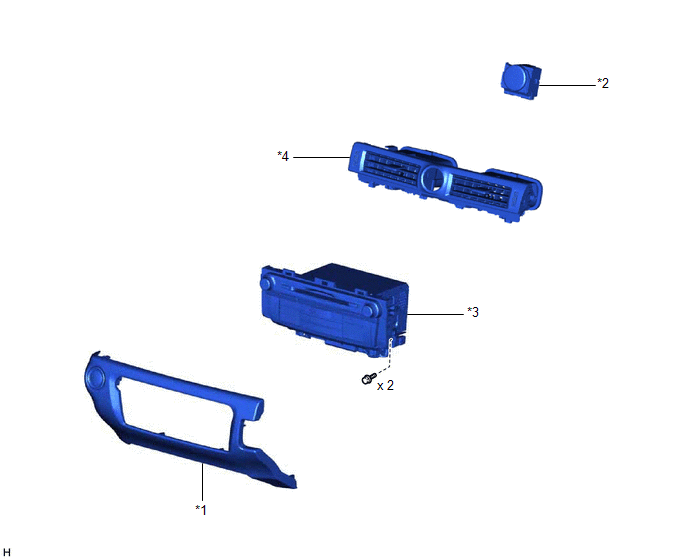

Fig 1: Clock Replacement Components
GTY532464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER INSTRUMENT CLUSTER FINISH PANEL *2 CLOCK ASSEMBLY
*3 MULTI-MEDIA MODULE RECEIVER ASSEMBLY *4 NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
