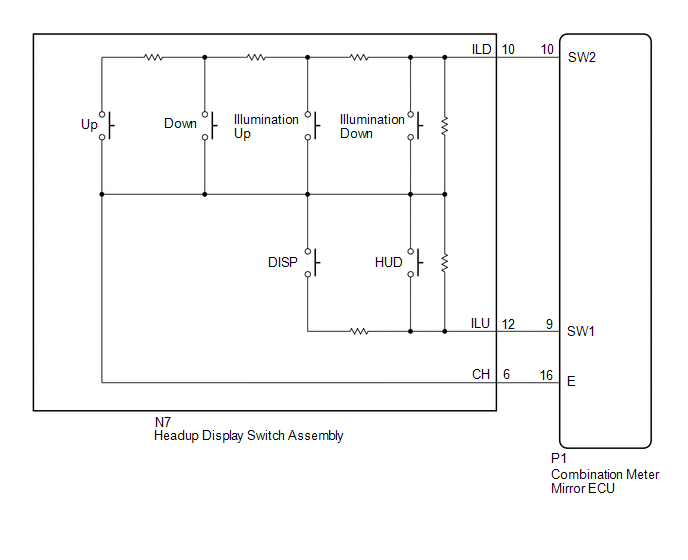

Headup Display Switch Circuit [10/2015 - ]: Wiring Diagram

GTY524799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
