Parts Location (07/2015 -): Illustration

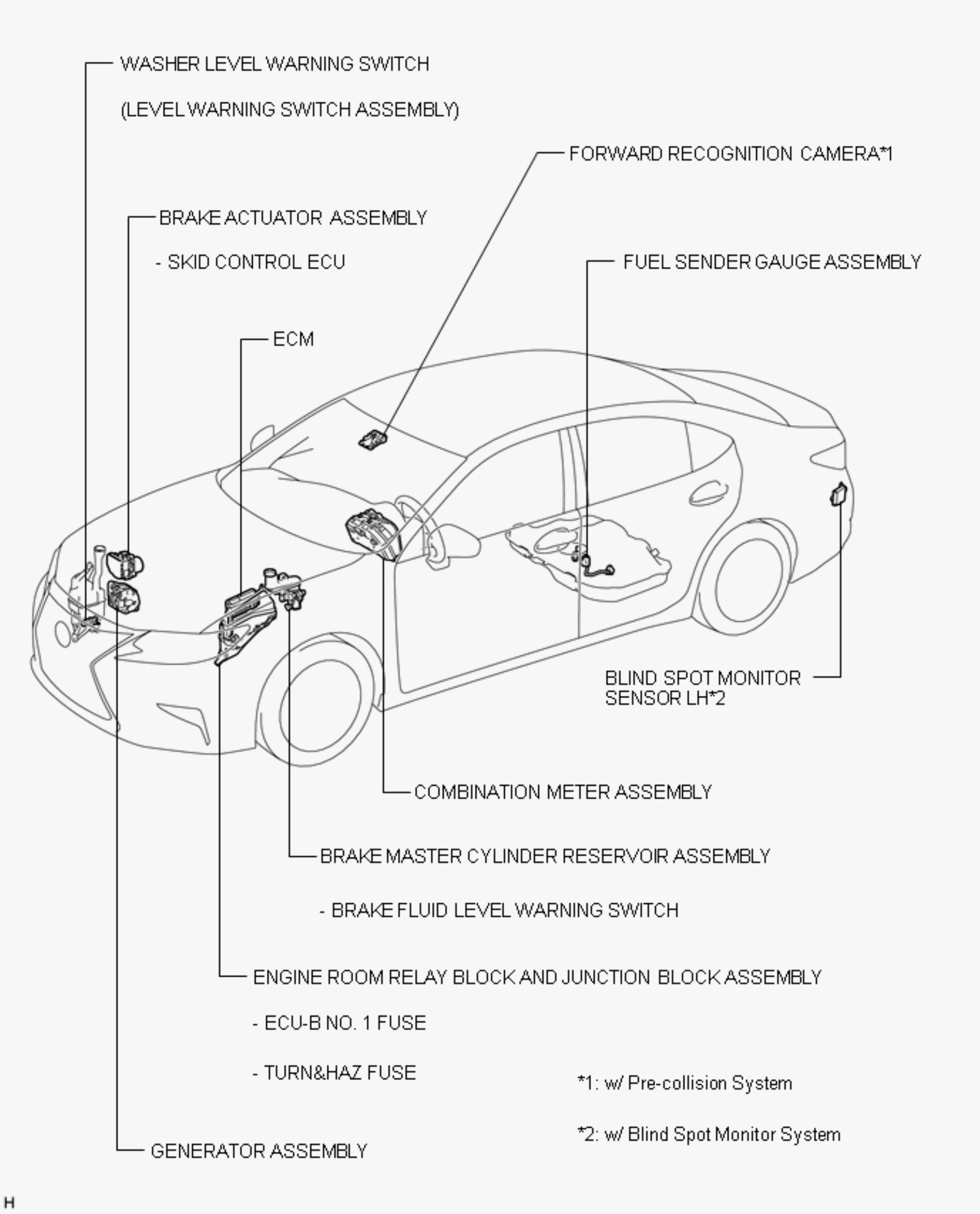

Fig 1: Meter / Gauge System Parts Location (1 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

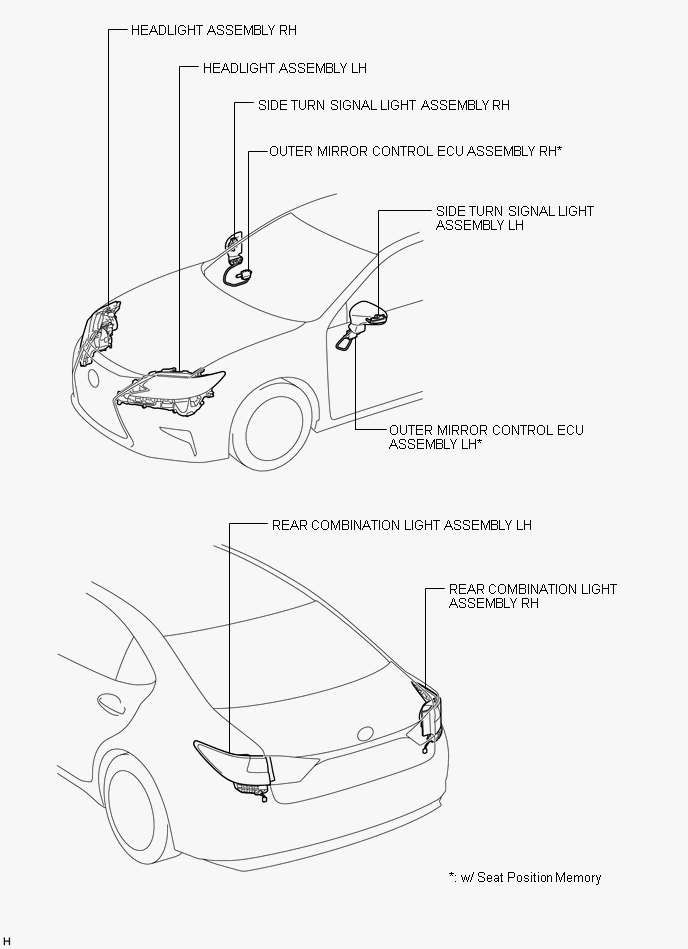

Fig 1: Meter / Gauge System Parts Location (2 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

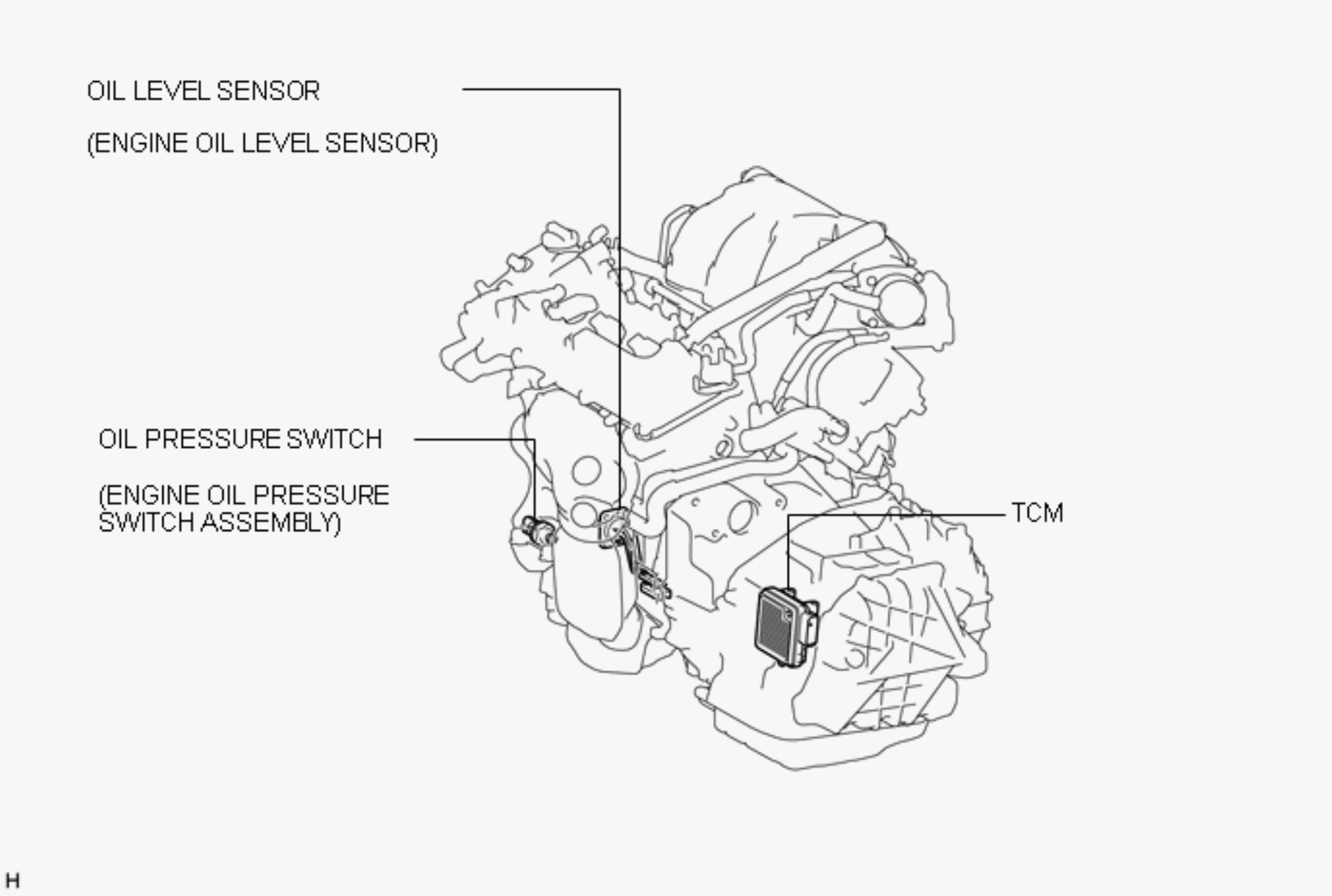

Fig 1: Meter / Gauge System Parts Location (3 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

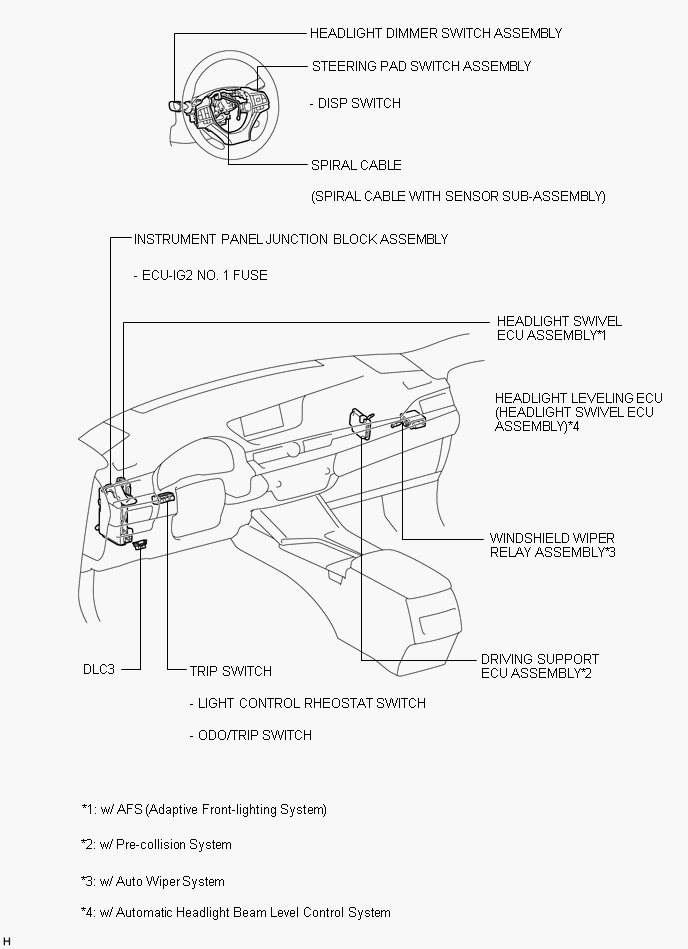

Fig 1: Meter / Gauge System Parts Location (4 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

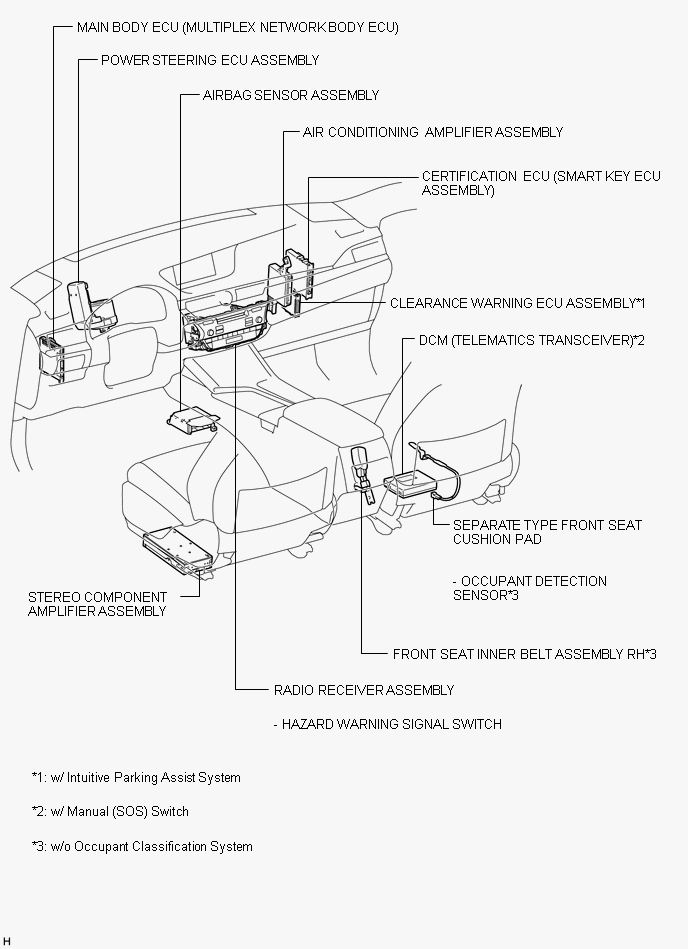

Fig 1: Meter / Gauge System Parts Location (5 of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
