DTC B150A: Lost Communication with HMI-LAN [07/2015 - ]: Wiring Diagram

  1. w/ Navigation System

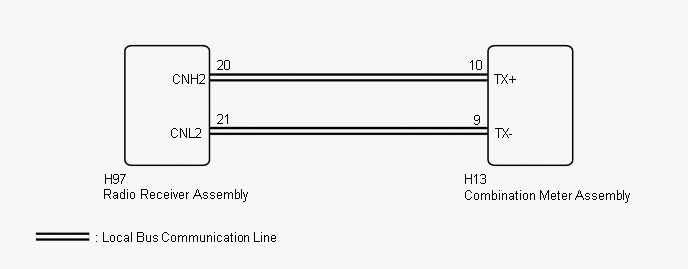

    Fig 1: HMI-LAN Communication Circuit Diagram (W/ Navigation System)
    GTY654256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Navigation System

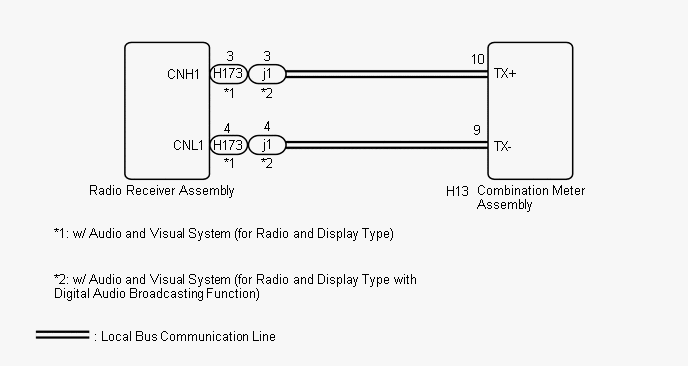

    Fig 2: HMI-LAN Communication Circuit Diagram (W/O Navigation System)
    GTY585147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
