DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [07/2015 - ]: Wiring Diagram

  1. w/ Reverse Shift-linked Mirror

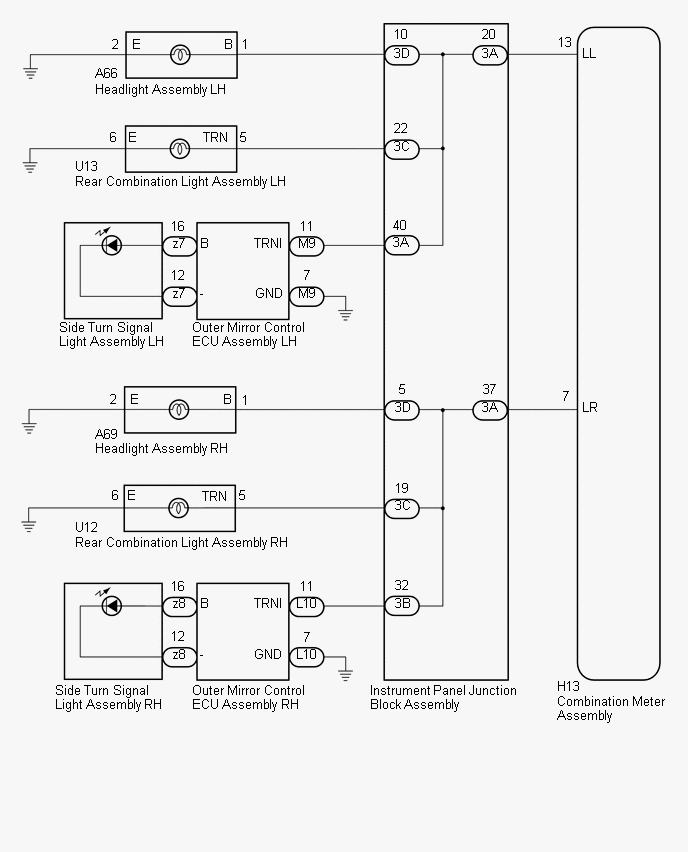

    Fig 1: Outer Mirror Control Assembly Circuit Diagram Circuit Diagram (W/ Reverse Shift-Linked Mirror RH)
    GTY628569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/o Reverse Shift-linked Mirror

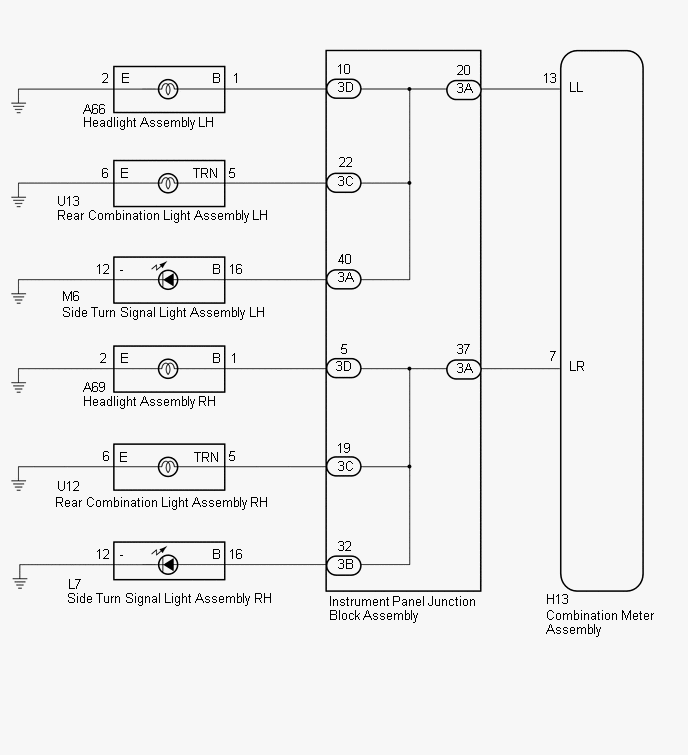

    Fig 2: Outer Mirror Control Assembly Circuit Diagram Circuit Diagram (W/0 Reverse Shift-Linked Mirror RH)
    GTY634128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
