Speed Signal Circuit [07/2015 - ]: Wiring Diagram

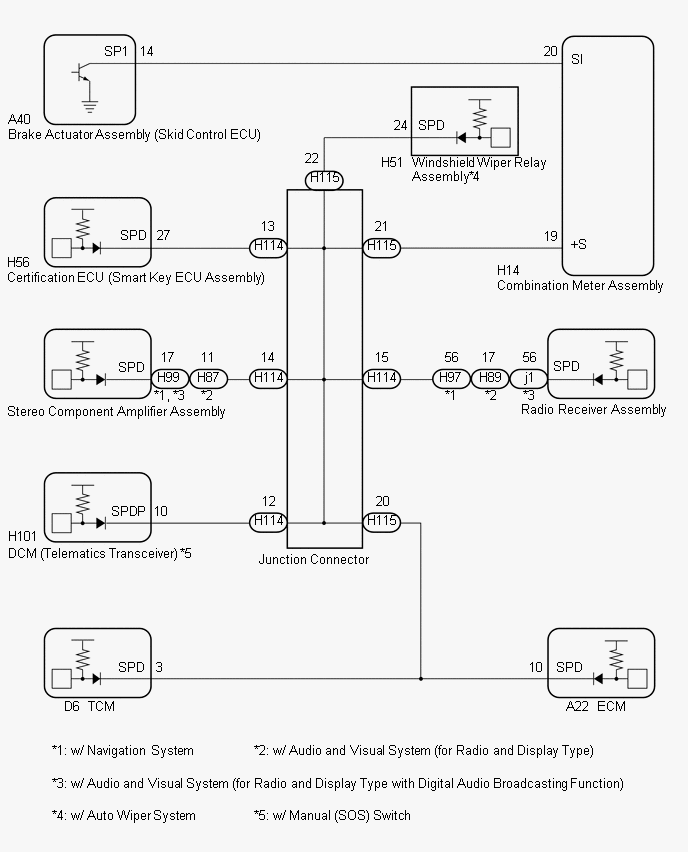

Fig 1: Vehicle Speed Signal Wiring Diagram

GTY659319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
